Description

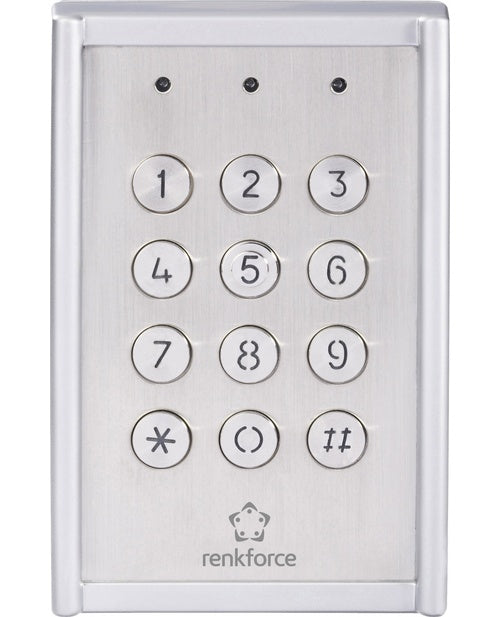

The Renkforce IP65 code lock features a surface-mount keypad housed in durable zamak for indoor and outdoor access control. Its backlit numeric pad supports entry of up to 99 individual codes and generates over 100 million unique combinations. The unit provides outputs for electric strike operation and alarm signaling, handling up to 20 A at 14 V DC on normally open contacts and 12 A at 14 V DC on normally closed contacts. Three LED indicators and an operating temperature range from –20 °C to +50 °C provide clear status feedback and stable operation in challenging environments.
Key Features
- IP65 protection rating
- Zamak housing
- Backlit numeric keypad
- Supports 99 user codes
- Electric strike and alarm outputs
- Handles 20 A (NO)/12 A (NC) at 14 V DC
Specifications
Brand: Renkforce
Product Type: code lock
Material: Zamak
Protection Features: IP65
LED Indicators: 3
Height (mm): 120
Width (mm): 80
Depth (mm): 35.5
Mounting Type: surface mount
Max User Codes: 99
Possible Combinations: 100000000
Supports Electric Strike: true
Alarm Output: true
Max Load No: 20 A at 14 V DC
Max Load Nc: 12 A at 14 V DC
Operating Temperature Range C: -20 to 50 °C
€226,72
