Description

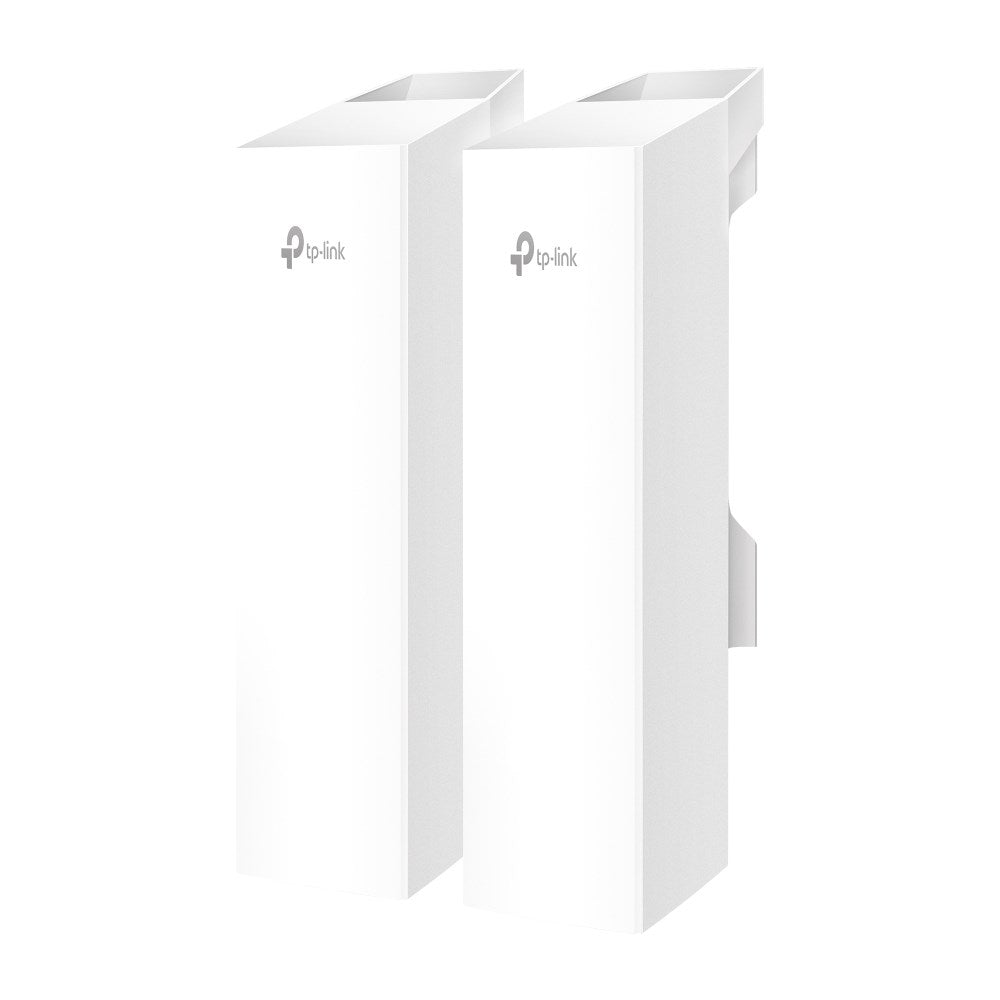

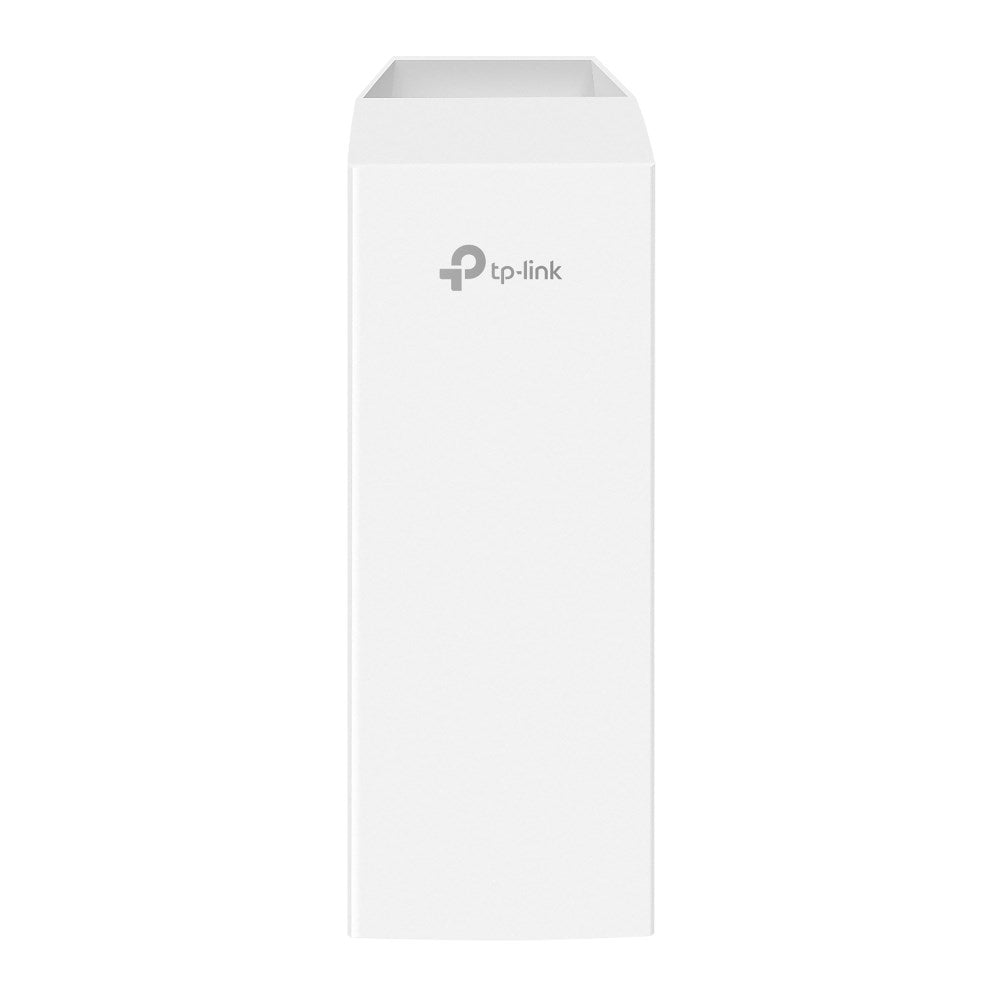

The TP-Link Omada EAP215-Bridge KIT V1 is a point-to-point outdoor wireless bridge kit featuring Wi-Fi 5 operation on the 5 GHz band with up to 867 Mbps throughput. Each unit employs 2×2 directional dual-polarized antennas with 11 dBi gain and a 70°×70° beam angle for long-range links. Three Gigabit Ethernet ports and passive 24 V PoE power make installation straightforward, while the IP65 housing and 6 kV lightning protection ensure outdoor reliability. Managed via the Omada SDN Cloud portal, the two-pack supports flexible cloud-based network control.
Key Features
- Up to 867 Mbps on 5 GHz
- 2×2 directional dual-polarized antennas
- 11 dBi antenna gain

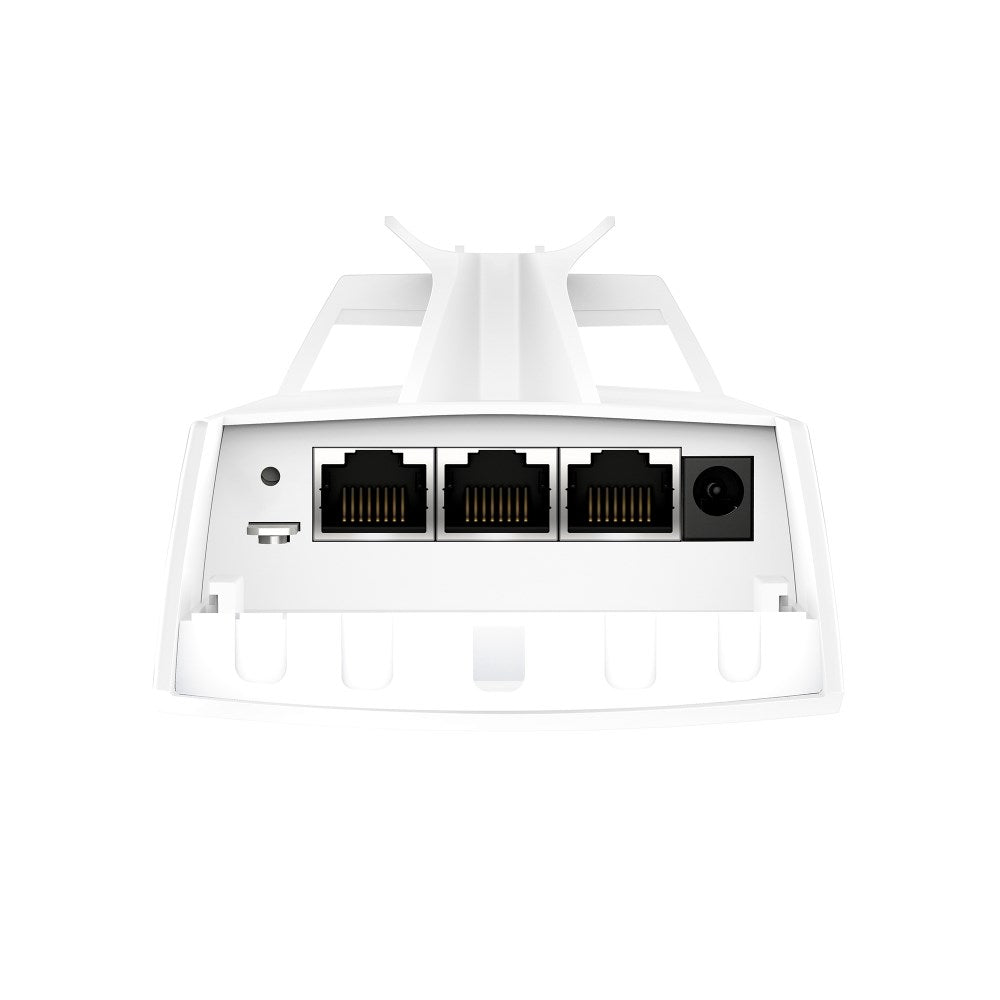

- 3×1 Gbps Ethernet ports
- Passive 24 V PoE support
- IP65 outdoor housing
Specifications
Brand: TP-Link
Model Number: EAP215-Bridge KIT
Product Type: Wireless Bridge Kit
Wifi Standard: Wi-Fi 5
Frequency Band: 5 GHz
Max Speed Mbps: 867
Tx Power 2 4Ghz Dbm: 23
Tx Power 5Ghz Dbm: 30
Antenna Configuration: 2×2 directional dual-polarized
Antenna Gain Dbi: 11
Opening Angle Horizontal Deg: 70
Opening Angle Vertical Deg: 70
Ethernet Ports: 3
Power Source: Passive PoE 24 V
IP Rating: IP65
Lightning Protection Kv: 6

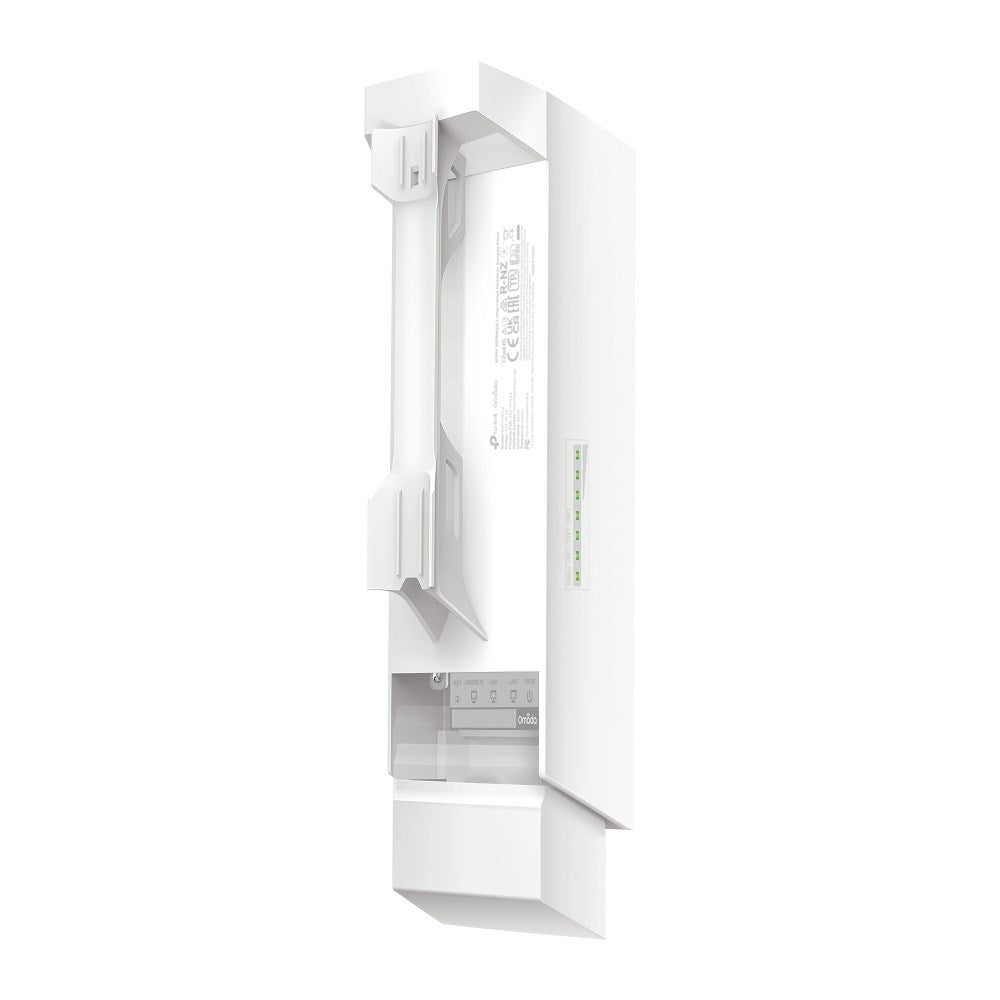

Mount Type: Pole mount
Pack Quantity: 2
Cloud Management: Omada SDN
€246,79
