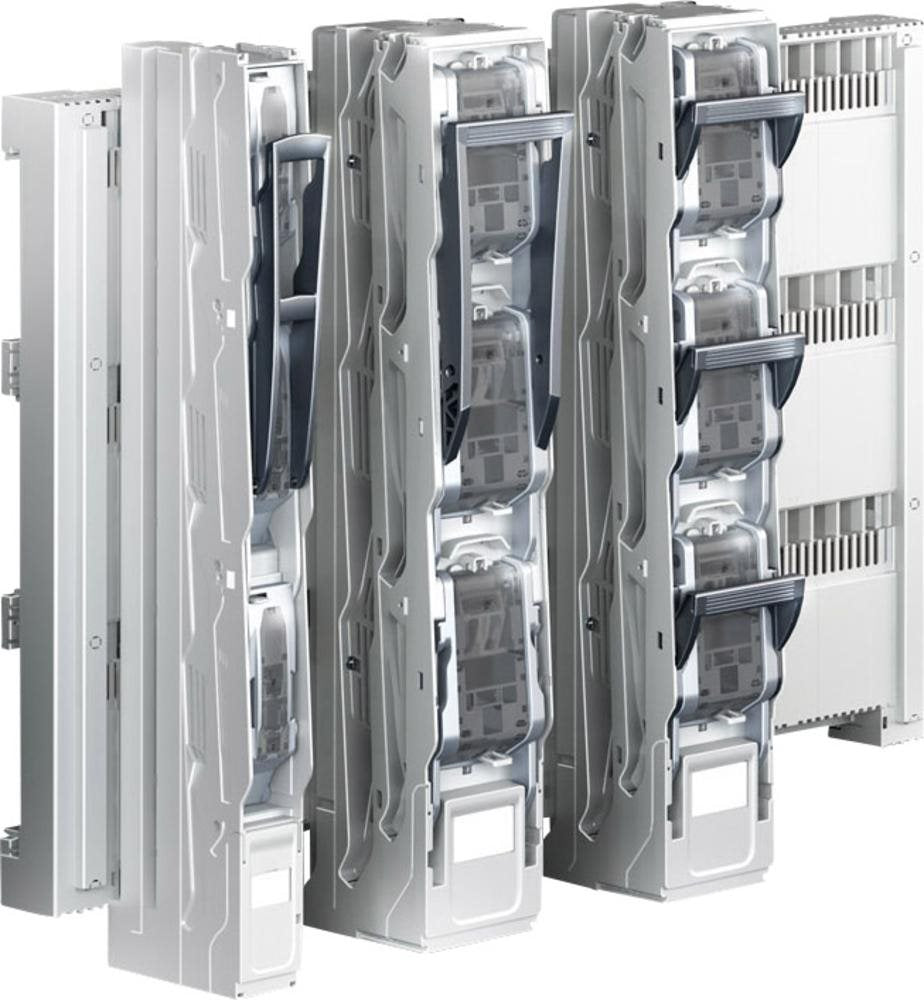

Description NH fuse switch disconnector size 2 - SV Test basis: IEC/DIN EN 60 947-3 DIN EN 60 269-2 (fuse links) Features: Material: Polyamide (PA 6.6), fire behavior according to UL 94-V0 Contact tracks: partially silver-plated hard copper Technical data: Design: 3-pole switchable, size: 2 Color: Light gray (RAL 7035) Housing accessory type (categorization): Switch disconnector module Weight: 5.11 kg Contents: 1 pc. Material (LOV): Polyamide Suitable for: Busbars: with cross-sectional height: 10 mm, busbar systems with center distance: 185 mm Type (manufacturer type): SV 9677.200 Further technical data: Connection type (electrical): M12 bolt Rated operating voltage: 690 V, 3 Cable exit: Top/bottom rated operating current max.: 400 A For transformer installation: yes Note: When using NH fuse switch disconnectors on busbars with touch protection cover, the use of the contact terminal is required.
€233,54
