Description

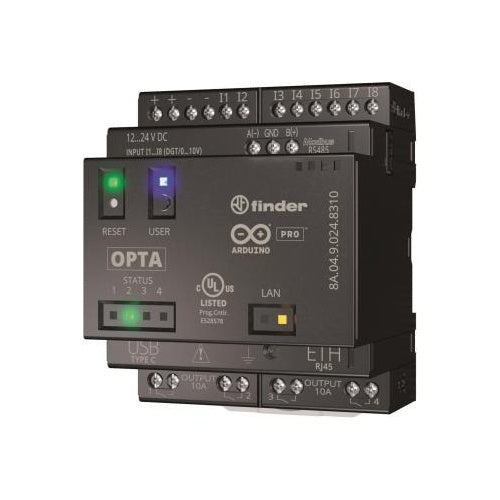

The FINDER OPTA Plus programmable logic relay (model 8A0490248310) combines multiple communication interfaces and high-performance I/O in a compact module. It includes a USB Type-C port for programming, data logging and power supply, plus an RJ45 port supporting Ethernet with Modbus TCP/IP and a dedicated RS485 Modbus port. The unit offers eight configurable analog (0–10 V) or digital inputs alongside four relay outputs rated at 10 A each, and supports programming in Arduino IDE and IEC 61131-3 languages. With a 70 mm width designed for 35 mm DIN-rail mounting, it integrates easily into industrial automation systems.
Key Features
- USB Type-C programming and power port
- Ethernet RJ45 with Modbus TCP/IP
- Modbus RS485 port
- 8 analog (0–10 V) or digital inputs
- 4 relay outputs rated 10 A
- Supports Arduino IDE and IEC 61131-3
Specifications
Brand: FINDER
Model Number: 8A0490248310
Product Type: Programmable logic relay
Width (mm): 70
Input Count: 8
Output Count: 4
Output Current A: 10
Usb Port: USB Type-C
Ethernet Port: RJ45
Rs485 Port: RS485
Supported Languages: LD, SFC, FBD, ST, IL, Arduino IDE
€248,76
