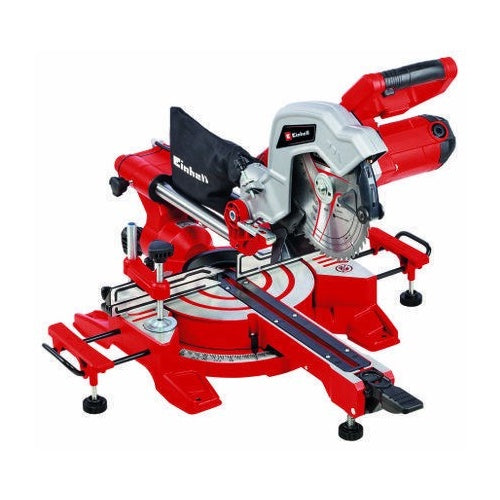

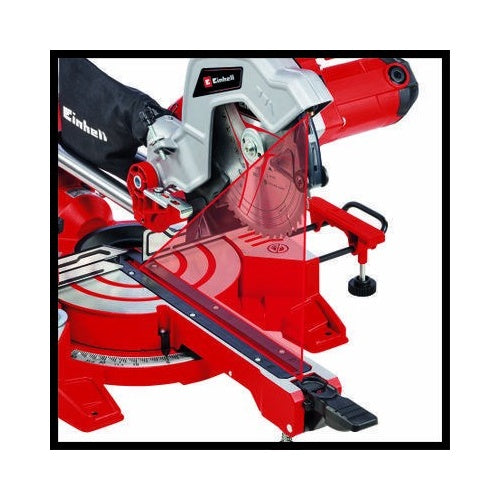

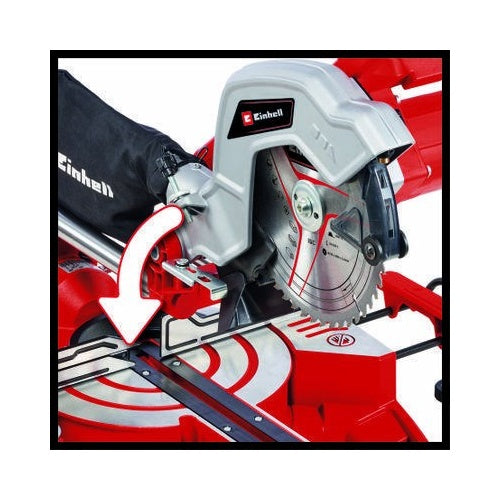

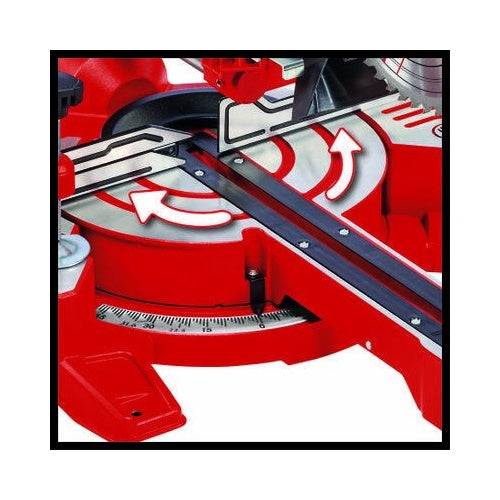

The TC-SM 216 is a sliding mitre saw which uses 216mm blades. Designed for DIYers, it is powered by a standard UK mains socket and comes with a blade included so you can get to work straight away. The turntable has a precise angle adjustment facility to make it easier to achieve good angular cuts. For the most common angles on do-it-yourself jobs, locking positions are provided on the turntable for adjusting the angle quickly and reliably. There are easy-to-read scales for the angles and widths. Also, the saw head can be tilted to the left for mitre cuts. The cutting width is up to 305 millimeters with a 90° setting and up to 210 millimeters with an angle of 45°. Additional benefits include a laser guide for aligning the blade on the cut line, and extendable workpiece supports on either side of the saw. Specifications Mains supply: 220-240 V / 50 Hz Power: 1500 W Number of saw teeth: 48 Pieces Max. power (S6 / S6%): 1600 W / 25 % Idle speed: 5200 min -1 Saw blade: 216mm (diameter) x 30mm (bore) Mitre cut: -45° - +0° Swiveling range: -47° - +47° Cutting width 90° x 90°: 305 x 65 Cutting width 90° x 45°: 215 x 65 Cutting width 45° x 90°: 305 x 35 Cutting width 45° x 45°: 215 x 35 Diameter of suction adapter: 36 mm Length: 790mm Width: 460mm Height: 380mm Contents TC-SM 216 Corded Electric Mitre Saw 240v 48 Tooth Blade Material Supports Workpiece Clamp Dust Bag.
€212,38
