Description

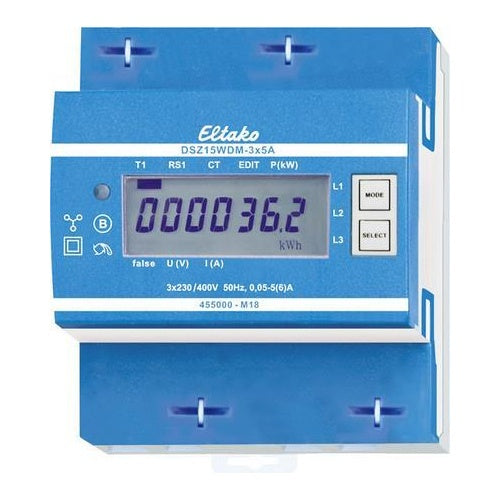

The ELTAKO DSZ15WDM-3x5A MID is a three-phase MID-calibrated measurement converter designed for M-Bus energy monitoring. It accepts up to three current transformers with secondary currents up to 5 A and measures active energy in 230 / 400 V networks with class B precision. The module mounts on standard DIN EN 60715 TH35 rails, occupying a 70 mm-wide footprint with a depth and height of 58 mm each, and consumes only 0.5 W in standby per channel. Its seven-segment digital display features MODE and SELECT buttons for menu navigation and an LED that flashes ten times per kWh for clear power indication.
Key Features
- Class B accuracy
- 0.5 W standby consumption per channel
- M-Bus interface
- Accepts up to 5 A transformers
- DIN EN 60715 TH35 mounting
- 230 / 400 V operation
Specifications
Brand: ELTAKO
Model Number: DSZ15WDM-3x5A MID
Product Type: Measurement converter
Color: Blue
Width (mm): 70
Height (mm): 58
Depth (mm): 58
Precision Class: B
Own Consumption W: 0.5
Phase Count: 3
Interface: M-Bus
Voltage Min V: 230
Voltage Max V: 400
Display Type: Digital
Mounting Rail Standard: DIN EN 60715 TH35
Converter Secondary Current Max A: 5
€248,09
