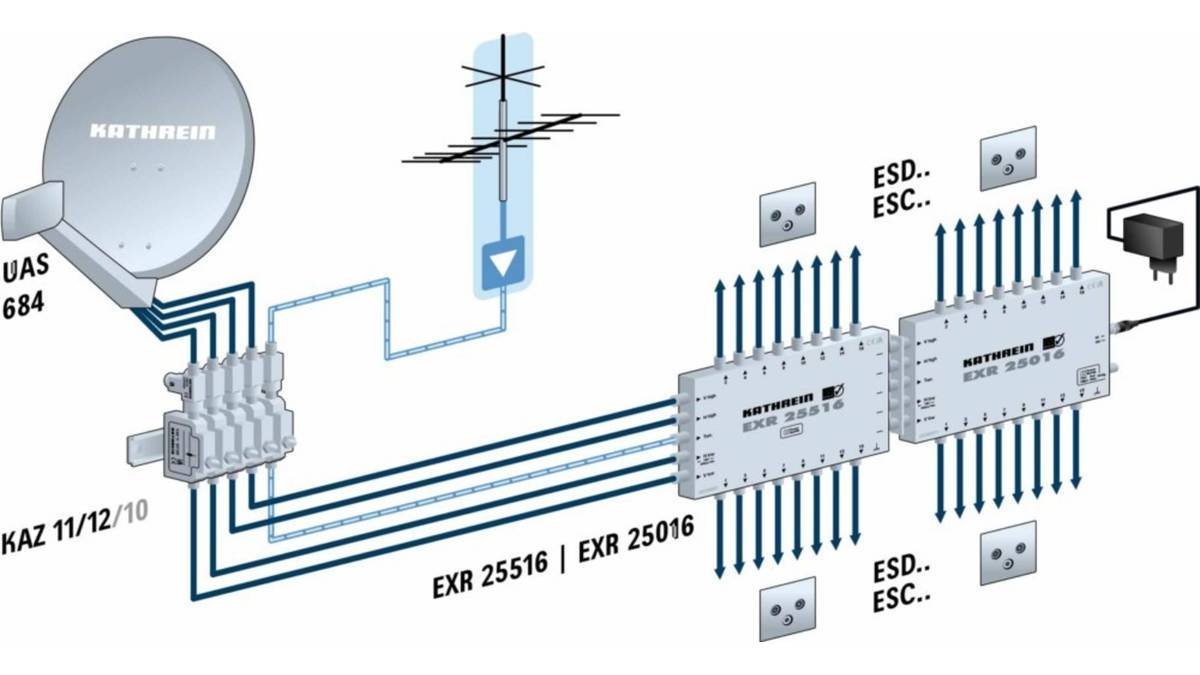

Cascadable multiswitch for distributing four satellite bands and terrestrial signals to multiple receivers - Only one cable is required per receiver (two cables for twin receivers) - Independent horizontal/vertical and low/high selection for each receiver - Switching is performed via the coaxial cable with 14/18 V and 0/22 kHz signal frequency - Integrated amplifier for low insertion loss in the satellite range - Integrated pre-emphasis to compensate for cable attenuation - Terrestrial reception is possible even when the satellite receiver is switched off - Terrestrial range: 5-862 MHz passive - High isolation between outputs - For indoor installation - Through-multiswitch for system expansion by 16 connections each - Up to six devices can be cascaded - Kathrein Power Saving: - As soon as no receiver is active, a signal is sent to the end multiswitch via the vertical low trunk, which then supplies the LNB power. switches off - Installation. Building materials Antennas Satellite system accessories - KATH Cask. Multiswitch EXR 25516 Passthrough 5 to 16.
€311,70
