Description

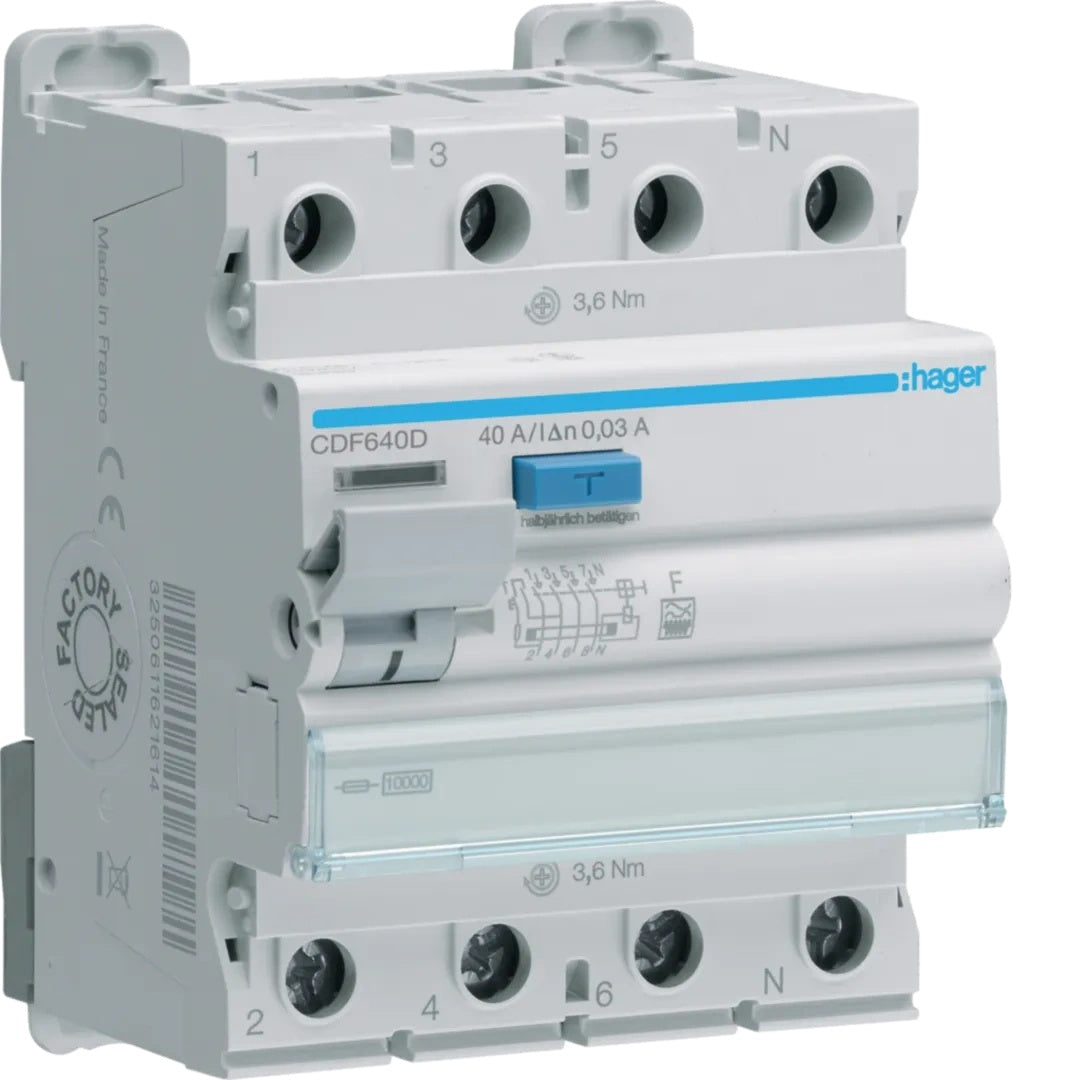

The HAGER CDF640D is a 3P+N Type F residual-current circuit breaker offering a 40 A nominal current and 30 mA residual-current trip sensitivity. It operates across a 230–400 V AC range and withstands up to 10 kA conditional short-circuit current per EN 61008-1, with a 1.25 kA breaking capacity. Terminals on both top and bottom accept conductors tightened to 3.6 Nm torque, and the device mounts on standard DIN rails. Housed in an IP20 enclosure, the CDF640D measures 85 mm in height, 72 mm in width and 70 mm in depth.
Key Features
- 3P+N configuration
- 40 A nominal current
- 30 mA residual-current sensitivity
- 10 kA conditional short-circuit current
- 230–400 V AC operational voltage
- Type F
Specifications
Brand: HAGER
Model Number: CDF640D
Product Type: residual current circuit breaker
IP Rating: IP20
Height (mm): 85
Width (mm): 72
Depth (mm): 70
Pole Configuration: 3P+N
Nominal Current A: 40
Residual Current Ma: 30
Conditional Short Circuit Current Ka: 10
Breaking Capacity Ka: 1.25
Operational Voltage Min V: 230
Operational Voltage Max V: 400
Frequency Hz: 50
€369,06
