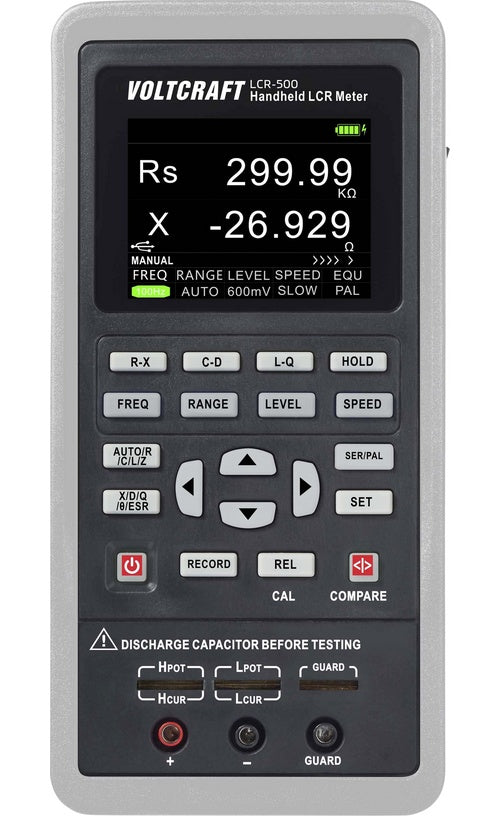

Measurement of inductance (L), capacitance (C), and resistance (R). Thanks to its compact design, the Voltcraft LCR-500 is not only suitable for component testing at the workplace, but also delivers fast and reliable, precise results during service and maintenance work. Variable parameters and precise measurement results. Three or five connections are available for all measurements. Depending on the requirements, ten test frequencies between 100 Hz and 100 kHz, as well as various primary (C/L/R/Z) and secondary parameters (D/Q/X/theta/ESR), can be selected. The measurement frequency is also adjustable: one, two, or four times per second. All measurements can be performed manually or automatically. To obtain precise measurement results, calibration can be performed in both open and short-circuited circuits. Specific Evaluation: The Voltcraft LCR-500 determines values with an accuracy of 0.25% for resistance measurements and 0.4% for capacitance measurements. The 2.8-inch LCD TFT color display shows the measurement results with a resolution of 40,000 counts. All measurements, results, and analyses can also be displayed on a PC via the USB interface. Handy Companion: Whether on the workbench or in the control cabinet, the Voltcraft LCR-500 can be optimally positioned anywhere thanks to its practical stand. The integrated belt loop offers plenty of freedom of movement.
€462,31
