Description

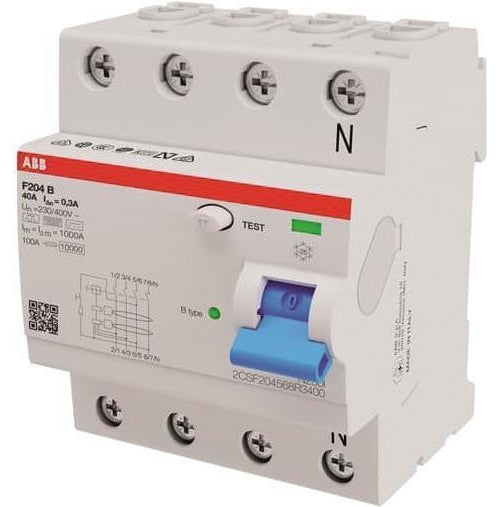

The ABB Stotz S&J F204B-40/0,3-4TE is a Type B residual current device with four poles and a 40 A rated current. It features a 300 mA tripping sensitivity and a 3 kA short-circuit breaking capacity. Occupying 4 TE on a DIN rail, it provides AC and DC residual-current protection designed for installations requiring Type B detection. The compact modular design enables straightforward integration into electrical distribution boards.
Key Features
- Type B residual current device
- 4 poles
- 40 A rated current
- 300 mA tripping current
- 3 kA breaking capacity
- 4 TE width
Specifications
Brand: Abb
Model Number: F204B-40/0,3-4TE
Product Type: Residual current device
Poles: 4
Rated Current A: 40
Trip Sensitivity Ma: 300
Breaking Capacity Ka: 3
Width Te: 4
€411,18
