Description

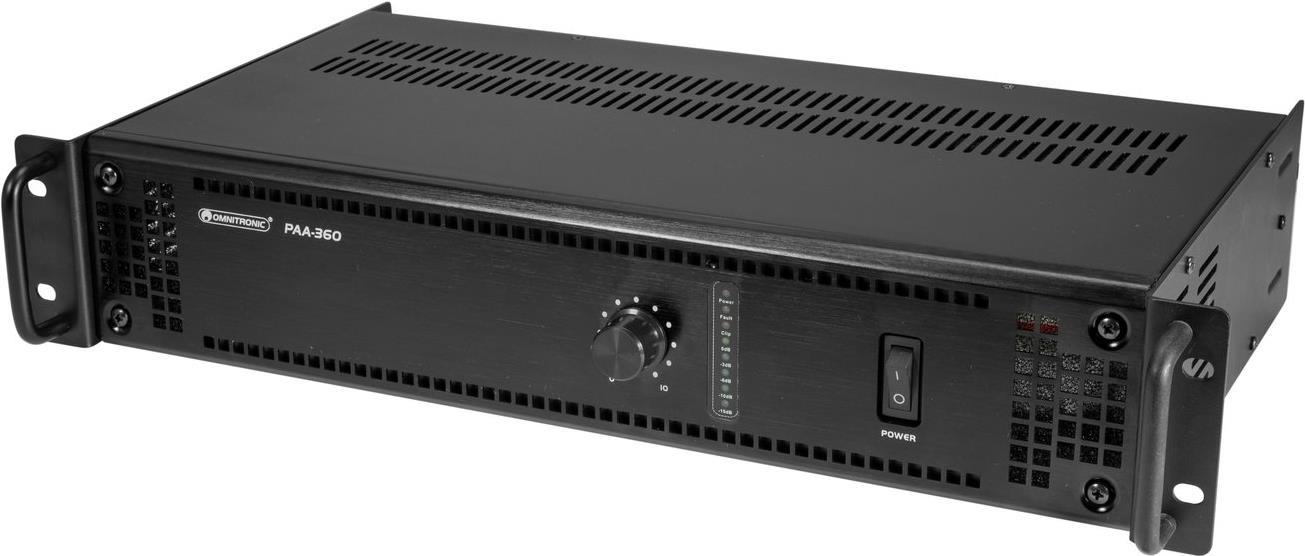

The OMNITRONIC PAA-360 is a professional 360 W PA power amplifier designed for fixed 70 V, 100 V and low-impedance audio installations. It provides a balanced line input with XLR and 6.3 mm jack connectors plus a feed-through output for signal forwarding to additional amplifiers. The front panel offers a master volume control and LED indicators for power, signal level, clipping and faults, while integrated protection guards against overheating, overload, short circuits and DC voltage. Its 19-inch, 2U rack-mountable design suits commercial sound systems in restaurants, hotels, bars and fitness studios.
Key Features
- 360 W RMS output power
- Class AB amplifier
- Balanced XLR and 6.3 mm jack inputs
- Feed-through outputs for cascading
- LED indicators for power, signal, clipping and faults
- Integrated overload, short-circuit and overheating protection
Specifications
Brand: OMNITRONIC
Model Number: PAA-360
Product Type: PA power amplifier
Power (W): 360
Amplifier Technology: Class AB
Number Of Line Inputs: 1
Line Input Connector: 3-pin XLR
Overheating Protection: true
Short Circuit Protection: true
Overload Protection: true
Power Supply: 230 V AC
Mains Frequency Hz: 50
Power Consumption W: 720
Rack Height U: 2
Width (mm): 483
Depth (mm): 385
Height (mm): 92
Weight (g): 6800
€503,48
