Description

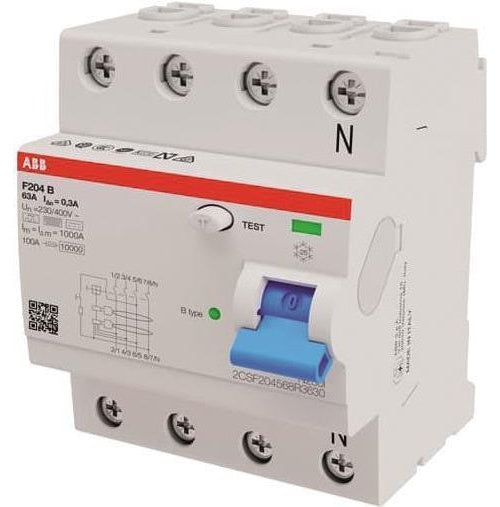

The ABB Stotz S&J F204B-63/0,3-4TE is a Type B residual current device featuring four poles and a 63 A rated current. It provides 300 mA tripping sensitivity and a 3 kA short-circuit breaking capacity. With a 4 TE footprint for DIN-rail mounting, it detects both AC and DC residual currents. The modular housing simplifies installation and replacement in electrical distribution panels.
Key Features
- Type B residual current device
- 4 poles
- 63 A rated current
- 300 mA tripping current
- 3 kA breaking capacity
- 4 TE width
Specifications
Brand: Abb
Model Number: F204B-63/0,3-4TE
Product Type: Residual current device
Poles: 4
Rated Current A: 63
Trip Sensitivity Ma: 300
Breaking Capacity Ka: 3
Width Te: 4
€544,24
