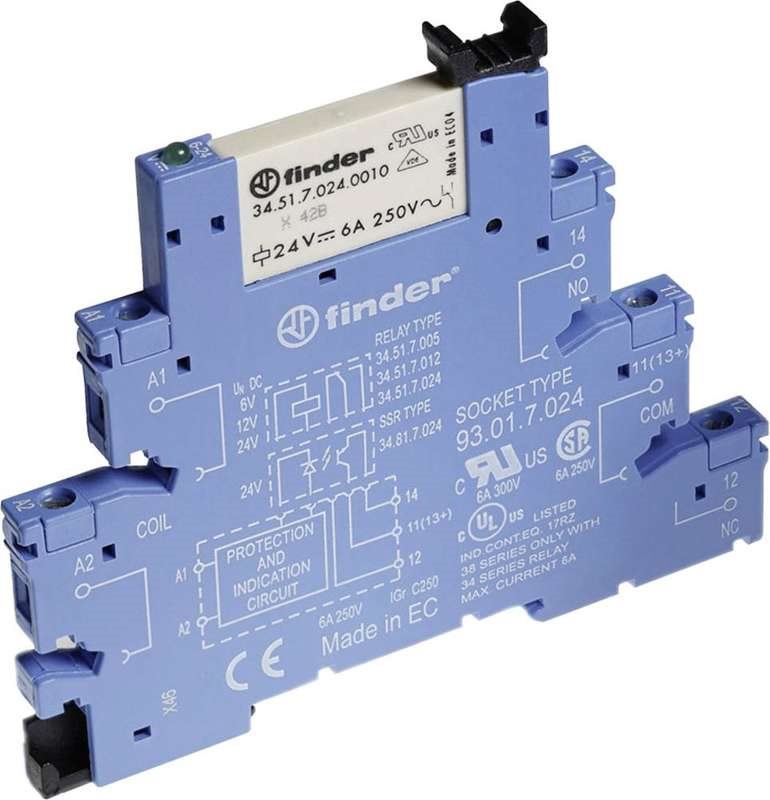

Description: Coupling module, series 38 (6.2 mm wide). Width only 6.2 mm. Mounted coupling relay; worn switching relay easily replaceable. Sensitive control, safe isolation according to VDE 0160/EN 50178. Technical data: Connection: Screw terminals Design: Coupling module 38.51 Screw socket Inrush current: Max. 10 A Contact type: 1 changeover contact Contact material: Silver alloy Service life (electrical): (AC1) 60 x 10³ switching cycles Service life (mechanical): 10 x 10⁶ switching cycles Rated voltage: 48 V DC/AC Product dimensions, width: 6.2 mm Product dimensions, height: 75.6 mm Product dimensions, length: 87.9 mm Switching capacity: Max. (DC1) 30 V/DC / (AC1) 1500 VA Switching voltage: 250 V/AC Switching current: 6 A Protection class: IP20 Coil power: 0.3 VA/300 mW Type: 38.51.0.048.0060 Ambient temperature: -40 to +70 °C Further technical data: Relay protection class: RT II Scope of delivery: Relay 34.51, screw socket 93.01, LED, voltage spike suppression device, retaining/removal clip. Note: Approvals:
€69,75
