Description

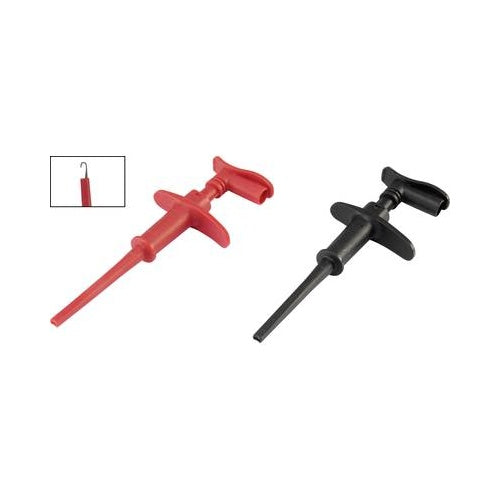

The VOLTCRAFT MSK-118 is a dual-purpose pickup terminal rated for CAT III 1000 V and CAT IV 600 V measurements. It features a 4 mm safety socket and robust metal hooks capable of clamping conductors up to 2.5 mm in diameter. Each hook measures 155 mm in overall length with a 56.5 mm height and 17.5 mm width, and handles currents up to 5 A. The insulated housings are color-coded black and red and operate across a temperature range of –20 °C to 45 °C.
Key Features
- CAT III 1000 V and CAT IV 600 V rating
- 4 mm safety socket
- 5 A nominal current
- 2.5 mm maximum conductor diameter
- Operating temperature –20 °C to 45 °C
Specifications
Brand: VOLTCRAFT
Model Number: MSK-118
Product Type: pickup terminal
Color: black, red
Height (mm): 56.5
Width (mm): 17.5
Length (mm): 155
Measurement Category: CAT III 1000 V, CAT IV 600 V
Connection Type: 4 mm male connector
Nominal Current A: 5
Clamping Range Max Mm: 2.5
Operating Temperature Min C: -20
Operating Temperature Max C: 45
€64,96
