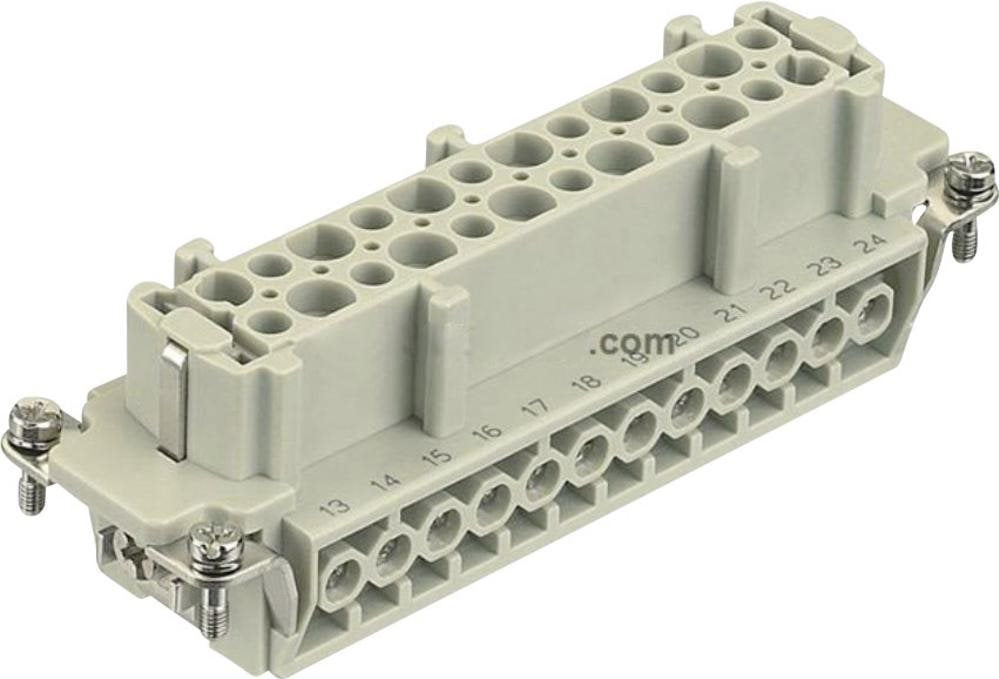

Description Industrial Connectors Series Han E - Inserts Heavy-duty industrial connectors for the toughest requirements in the automotive, machine, and plant engineering industries. Technical Data: Connection (Components): Screw Number of mating cycles (actuations): 500 Size: 24 B Series: 1 - 24 Rated voltage: 500 V Rated current: 16 A Color: Gray Total number of poles: 24 + PE Conductor cross-section (max.): 4 mm² Conductor cross-section (min.): 0.14 mm² Number of poles: 24 Series (Connectors Han): Han E Connector type (categorization): Socket insert Temperature (max.): +125 °C Temperature (min.): -40 °C Leading contact (PE): Yes Note: In conjunction with order no. 74 95 55, it is possible to create a 48-pole connector in size 48 B from two 24-pole inserts.
€91,42
