Description

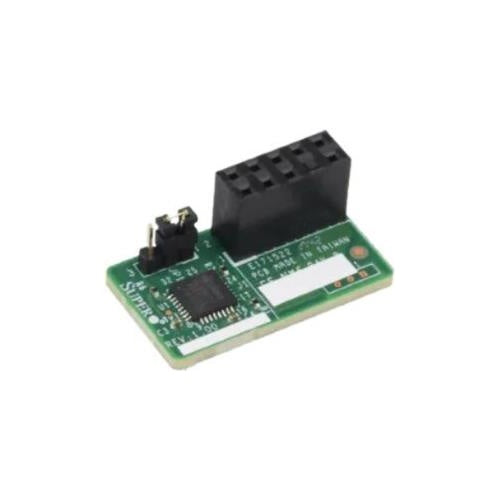

The Supermicro AOM-TPM-9670H-O is a horizontal Trusted Platform Module that adds hardware-based security to compatible Supermicro server motherboards via a 10-pin SPI header. It complies with the TPM 2.0 standard and uses an Infineon 9670 controller to securely store encryption keys, passwords, and certificates on-board. The module features onboard EEPROM for firmware enhancements and supports SHA-1 and SHA-256 hardware acceleration, random number generation, and dictionary-attack protection. Its low-profile horizontal form factor (26.13 × 14.64 × 13.10 mm) operates at 3.3 V across a temperature range of -20 °C to 80 °C, making it suitable for space-constrained chassis including 1U systems.
Key Features
- TPM 2.0 specification support
- Infineon 9670 controller
- 10-pin SPI header connection
- Horizontal low-profile form factor
- On-board SHA-256 hardware acceleration
- Overvoltage and undervoltage detection
Specifications
Brand: Supermicro
Model Number: AOM-TPM-9670H-O
Product Type: Trusted Platform Module
Tpm Specification: TPM 2.0
Host Interface: SPI
Motherboard Connector: 10-pin TPM header
Form Factor: Horizontal
Compatibility: Supermicro motherboards with supported 10-pin TPM connector
Operating Voltage: 3.3
Minimum Operating Temperature C: -20
Maximum Operating Temperature C: 80
Width (mm): 26.13
Length (mm): 14.64
Height (mm): 13.1
Rohs Compliant: true
Lead Free: true
€95,84
