Description

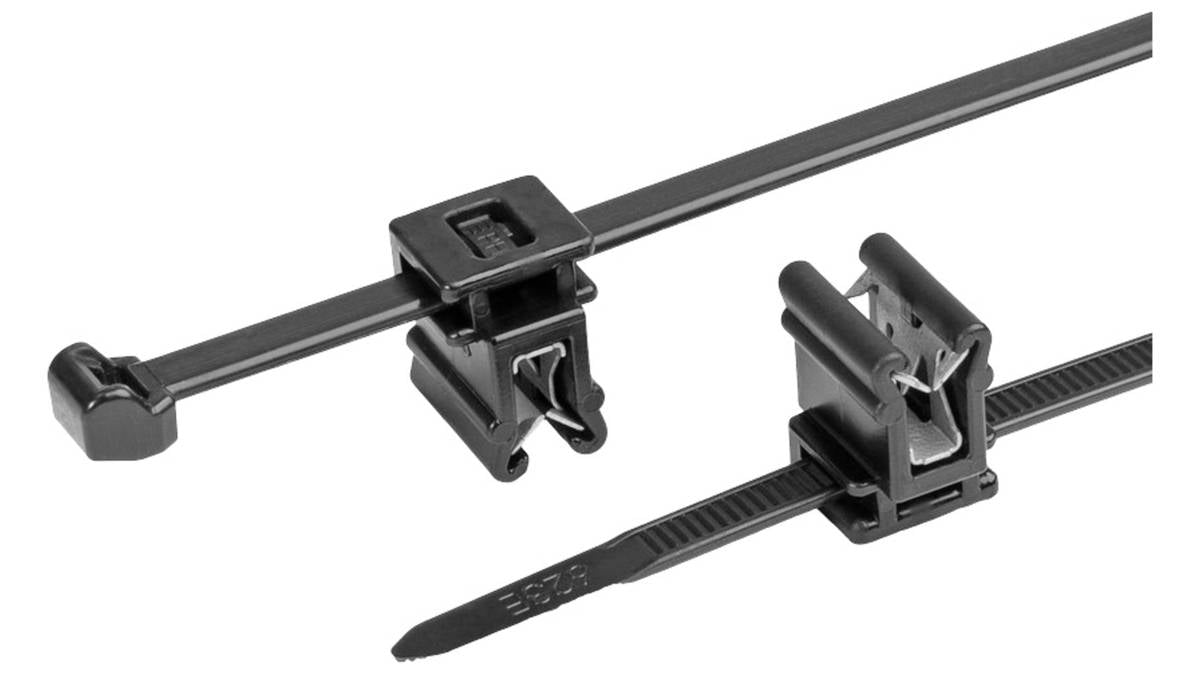

The HellermannTyton T50ROSEC4A-PA66W-BK (156-00948) is a pre-mounted cable tie with an integrated edge clip for panel thicknesses from 1 to 3 mm. Each 200 mm long tie features a 4.6 mm wide polyamide 6.6 strap rated UL94 V2 flame resistant and halogen-free. The assembly delivers a minimum holding force of 225 N and secures cable bundles up to 45 mm in diameter. Operating temperatures range from -40 °C to +85 °C for diverse environment use.
Key Features
- 200 mm tie length
- 4.6 mm strap width
- 225 N minimum holding force
- Secures bundles up to 45 mm Ø
- Polyamide 6.6 material
- UL94 V2 flame retardant
Specifications
Brand: HELLERMANNTYTON
Model Number: T50ROSEC4A-PA66W-BK
Product Type: cable tie with edge clip
Material: polyamide 6.6
Width (mm): 4.6
Length (mm): 200
Flame Retardant: UL94 V2
Halogen Free: true
Temperature Min C: -40
Temperature Max C: 85
Holding Force N: 225
Bundle Diameter Max Mm: 45
Sheet Thickness Min Mm: 1
Sheet Thickness Max Mm: 3
€103,83
