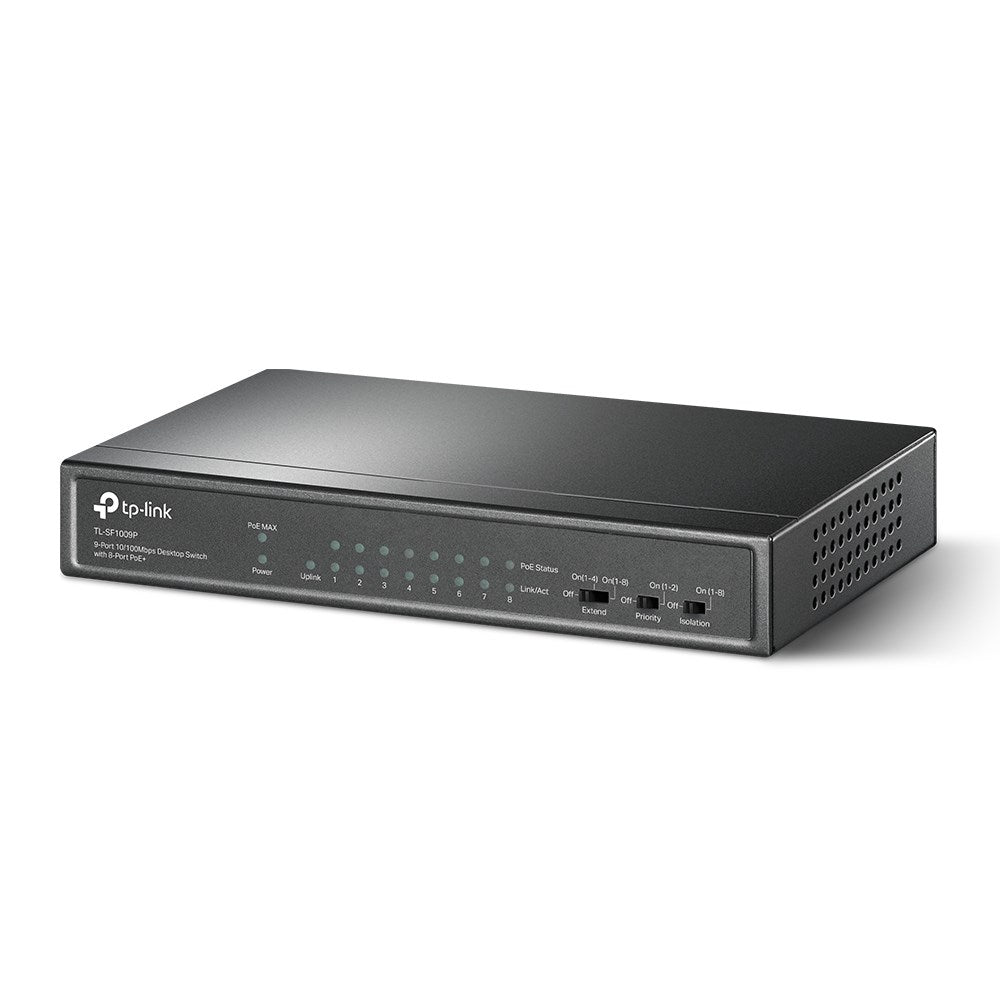

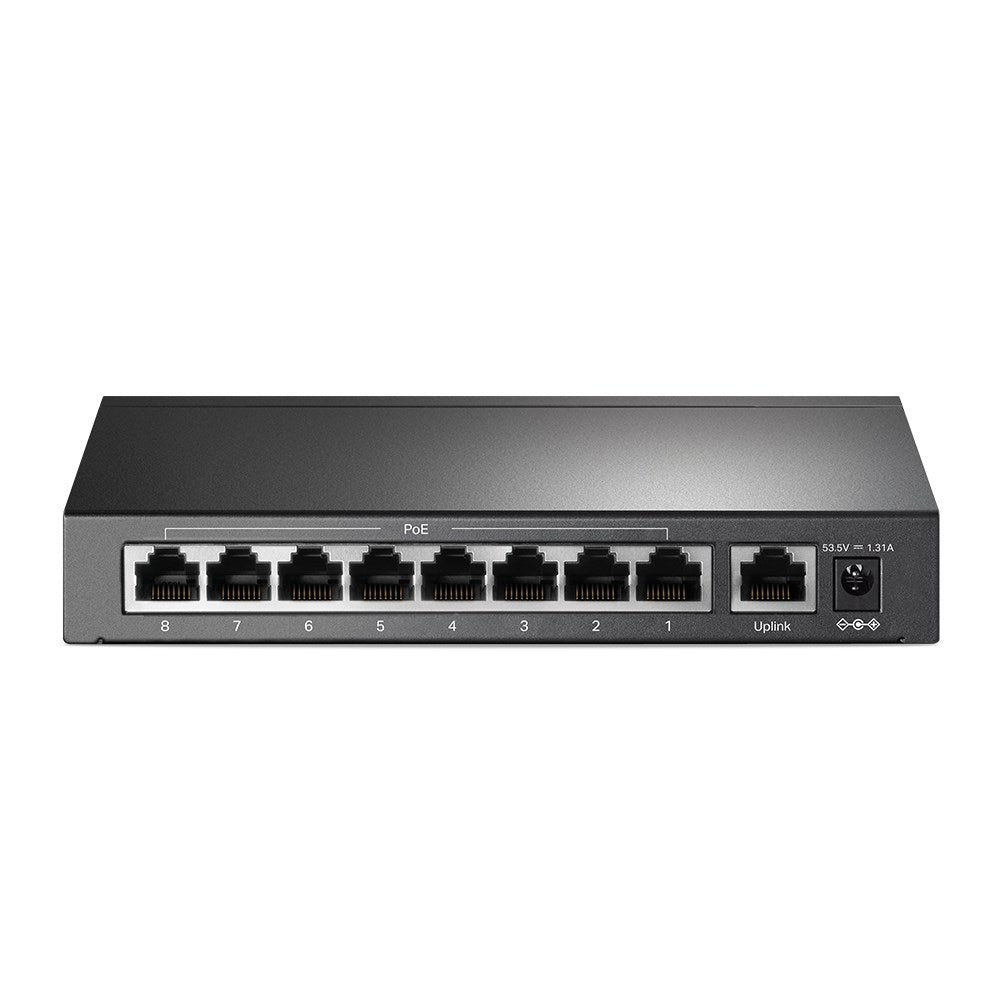

TP-Link TL-SF1009P 9-Port Metal Fast Ethernet Switch with 8 PoE+ Ports. The TL-SF1009P switch was developed with 9 RJ45 10/100 Mbps ports and 8 PoE+ ports that transfer data and power via individual cables. In extended mode, data transmission reaches up to 250m, with high priority given to ports 1-2 in guaranteed mode, ensuring quality for sensitive applications. It is compatible with IP cameras, access points, IP phones, computers, printers, and more. Its metal case ensures high quality and a long lifespan. Features of the TP-Link TL-SF1009P 9-Port Metal Fast Ethernet 10/100Mbps Switch with 8 PoE+ Ports - Brand: TP-Link - Model: TL-SF1009P Specifications of the TP-Link TL-SF1009P Switch Interface - 9 x 10/100 Mbps RJ45 Ports (8 x 10/100 Mbps 802.3af/at PoE+ Ports) - Auto Negotiation - Auto MDI/MDIX Network Media - 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100m) - EIA/TIA-568 100 STP (maximum 100m) - 100BASE-TX: Category 5 UTP, 5e cable (maximum 100m) - EIA/TIA-568 100 STP (maximum 100m) Quantity of Fans - No Fan Physical Security Lock - Yes External Power Supply - External power adapter (output: 53.5VDC / 1.31A) Packet Forwarding Rate - 1.3392 Mpps PoE Ports (RJ45) - Standard: 802.3 af/at compatible - PoE Ports: 1-8 - Power Supply: 65 W MAC Address Table - 2K Jumbo Frame - 2 KB Switching Capacity - 1.8 Gbps Dimensions (W x D x H) - 6.7 x 3.9 x 1.1 in. (171 98 27 mm) Maximum power consumption - 3.6 W (220/50 Hz. No PD connected) - 77.08 W (220/50 Hz. 65 W with PD connected) Maximum heat dissipation - 12.28 BTU/h (no PD connected) - 262.84 BTU/h (65 W with PD connected) Transmission Method - Store-And-Forward Advanced Functions - Compatible with IEEE 802.3af/at Compliant PDs - Extension mode button (ports 1-4 and ports 1-8, PoE power supply up to 250 m/s data transmission) - Priority mode button (ports 1-2) - Isolation mode button (ports 1-8) - Auto-Learning and Auto-Aging of MAC address - IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode Certification - FCC, CE, RoHS Environment - Operating temperature: 0–40 °C (32–104 °F) - Storage temperature: -40–70 °C (-40–158 °F) - Operating humidity: 10–90% RH non-condensing - Storage humidity: 5–90% RH non-condensing Package Contents - TL-SF1009P - Power adapter - Installation guide.
€81,86
