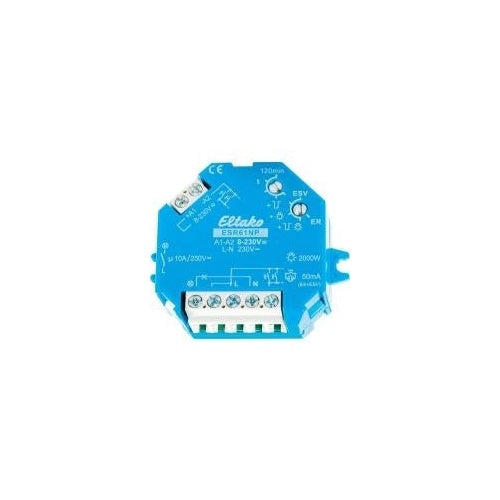

Description: Surface-mounted/flush-mounted impulse switch ESR61NP, 1 normally open contact, 10 A. For flush-mounted/surface-mounted installation. Low switching noise, no standby power consumption, zero-voltage switching. Controlled with 230 V, additional control input 8–230 V/UC. Supply and switching voltage 230 V. Time delay adjustable up to 120 minutes. Max. 50 mA neon indicator current at the control input. The delay time can be deactivated, enabling impulse switch operation (without neon indicator current). The switching relay function can also be selected. Switch-off warning and continuous push-button illumination can be activated. Technical data: Design: Surface-mounted/flush-mounted impulse switch, 1 normally open contact, 10 A; Operating voltage: 8 - 230 V AC or 230 V; Contact type: 1 normally open contact; Product dimensions, width: 55 mm; Product dimensions, length: 45 mm; Switching capacity: (incandescent lamps) 2000 W; Switching voltage: 250 V AC; Switching current: 10 A; Type: ESR61NP; Note: Contacts are not potential-free.
€80,34
