Description

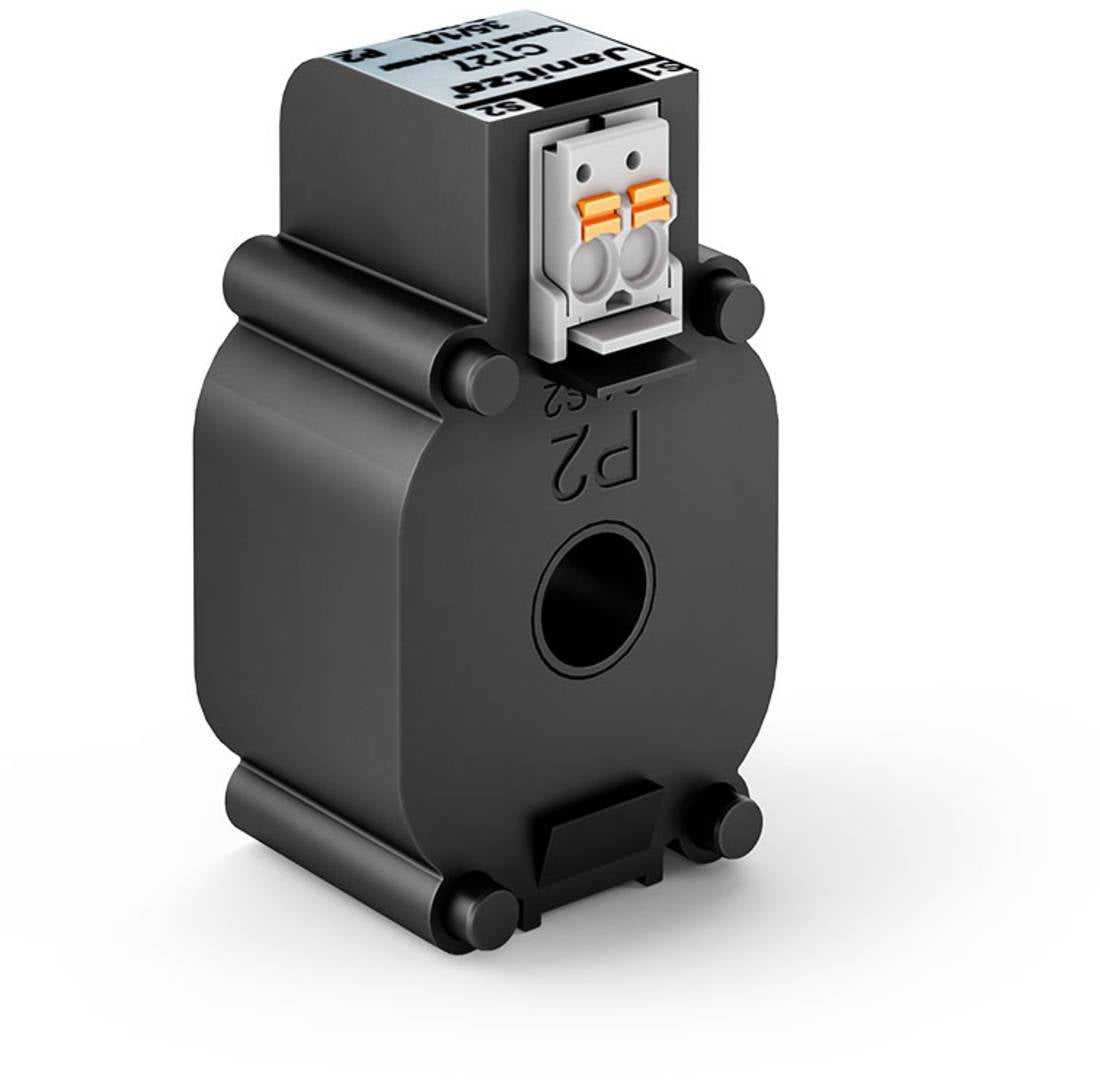

The JANITZA CT27-64 (1503081) is a compact plug-in current transformer designed for three-phase systems with a 64:1 A ratio at 50 Hz. It delivers class 1 accuracy, supports cable sections up to 0.5 mm² through a 7.5 mm aperture, and is molded in PA6.6 housing. The unit complies with IEC60044-1 and IEC61869-2 standards, measures 46 × 23 × 27 mm, weighs 40 g, and provides 0.2 VA rated power. It is optimized for digital metering devices in industrial panels.
Key Features
- 64:1 A ratio at 50 Hz
- Class 1 accuracy
- PA6.6 housing
- IEC60044-1 and IEC61869-2 compliant
- 7.5 mm cable aperture
- Dimensions: 46×23×27 mm
Specifications
Brand: JANITZA
Model Number: 1503081
Product Type: Current transformer
Primary Current A: 64
Secondary Current A: 1
Power Va: 0.2
Accuracy Class: 1
Frequency Hz: 50
Material: PA6.6
Cable Section Mm2: 0.5
Cable Aperture Diameter Mm: 7.5
Height (mm): 46
Width (mm): 23
Depth (mm): 27
Weight (g): 40
Standards: IEC60044-1, IEC61869-2
€105,59
