Description

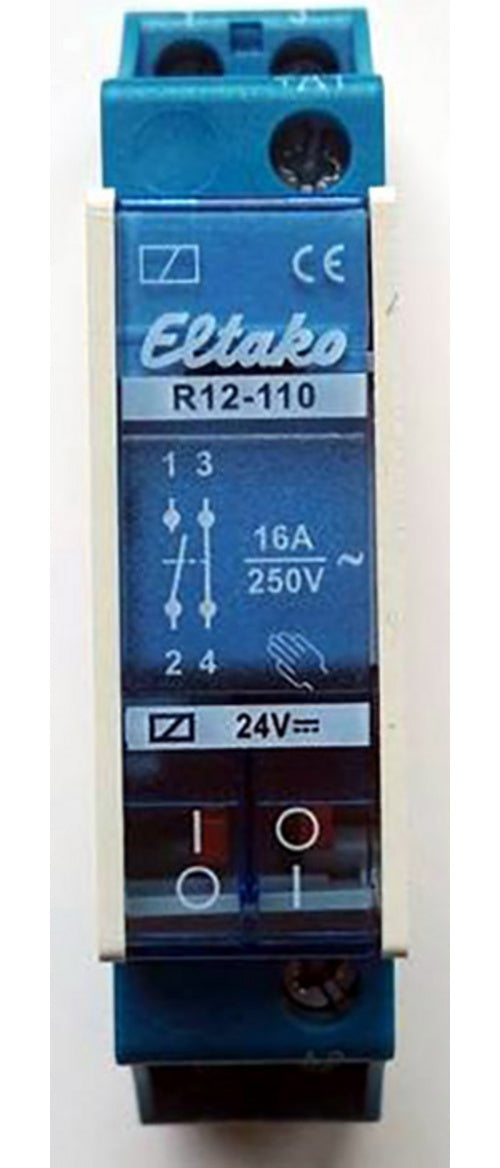

The Eltako R12-110-24V DC is a 24 V DC electromechanical switching relay featuring one normally open and one normally closed contact. It mounts on a DIN EN 60715 TH35 rail, occupies a single 18 mm module width and 55 mm depth, and provides manual actuation with an integrated position indicator. The coil draws 1.9 W of power while the contacts switch up to 8 A, backed by dielectric test voltages of 2000 V between contacts and 4000 V between coil and contacts. Rated for IP20 and IP50 protection, it operates in ambient temperatures from -5 °C to 50 °C.
Key Features
- 24 V DC coil voltage
- 1 NO and 1 NC contact
- 8 A maximum switching current
- Coil power consumption 1.9 W
- DIN-rail mount, 18 mm width
- Dielectric tests 2000 V/4000 V
Specifications
Brand: ELTAKO
Model Number: R12-110-24V DC
Product Type: switching relay
Coil Voltage V: 24
Coil Power W: 1.9
Switching Current A: 8
Width (mm): 18
Depth (mm): 55
Height (mm): 55
IP Rating: IP20, IP50
Temperature Min C: -5
Temperature Max C: 50
Mounting: DIN EN 60715 TH35
Contact Type: 1 NO (T), 1 NF (R)
Dielectric Strength V Contact To Contact: 2000
Dielectric Strength V Coil To Contact: 4000
€130,55
