Description

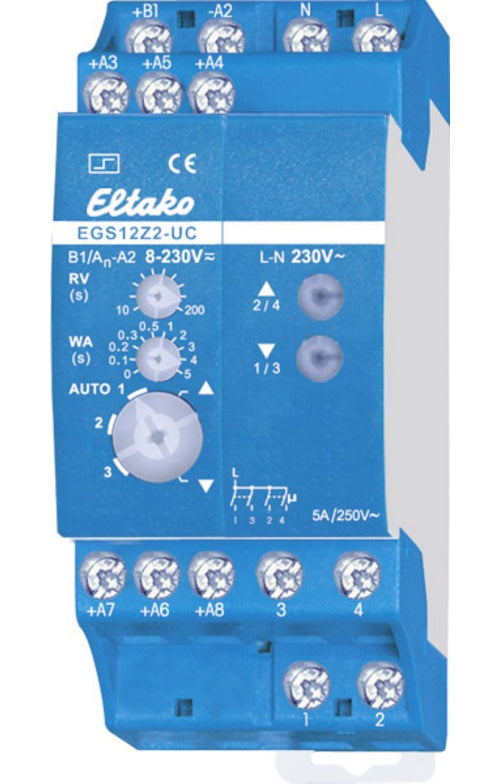

The Eltako EGS12Z2-UC is a UC-operated impulse group switch mounting on profile rails, offering four non-equipotential NO contacts suitable for two separate 230 V motors. It switches up to 2 A at 250 V AC with a maximum breaking capacity of 500 W, and consumes just 0.05 to 0.9 W in standby. Control voltages from 12 V to 230 V AC/DC are supported, and front-panel rotary switches select motor outputs (1/2 for motor 1, 3/4 for motor 2). The compact unit has a 58 mm depth housing.
Key Features
- UC control voltage 12 V–230 V AC/DC
- 4 NO contacts
- 2 A maximum switching current
- 500 W maximum switching power
- Standby loss 0.05–0.9 W
- Depth 58 mm
Specifications
Brand: ELTAKO
Model Number: EGS12Z2-UC
Product Type: impulse group switch
Control Voltage Min V: 12
Control Voltage Max V: 230
Switching Current A: 2
Max Switching Power W: 500
Standby Power Loss Min W: 0.05
Standby Power Loss Max W: 0.9
Contact Voltage Max V: 250
Contact Type: 4 NO (T)
Depth (mm): 58
Mounting: profile rail
€120,57
