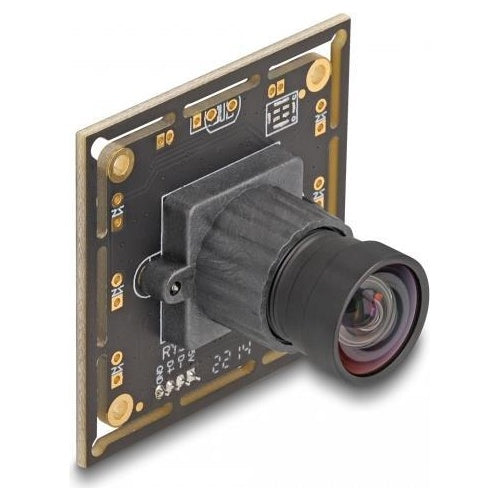

Description This USB 2.0 camera module from Delock offers high resolution in a very compact design with low power consumption. It is ideal for integration into industrial components such as IPCs, embedded systems, sensors, and device manufacturing. The use of a light-sensitive sensor with backlighting (BSI) expands the module's range of applications. HDR - High Dynamic Range increases the overall dynamic range to ensure more detailed images in scenes with both light and dark areas. Specifications - Connection: 1 x 4 Pin USB 2.0 SMT connector, 1.5 mm pitch - Resolution: 2.1 Megapixel - Sensor: PS4231 - With optical IR filter - Maximum resolution: 1080p 30 fps (1920 x 1080) - Image sensor processor functions: - Automatic Black Level Calibration (ABLC) - Integrated Local Tone Mapping - Black Sun suppression in CMOS sensors - Power consumption: approx. 100 mA - Operating voltage: 5 V DC - Operating temperature: -10 °C 70 °C - Operating humidity: 80 % - Sensor size: 1/2.7" - Sensitivity: 5.8 V / lx s - Signal-to-noise ratio (SNR): approx. 41 dB - Dynamic range: 85 dB - Fixed focus: 0.3 m - infinity - Aperture: F/3.2 - Lens thread: M12 - Frame rate: all resolutions MJPG 30 fps - Dimensions (WxDxH): approx. 38.0 x 38.0 x 22.3 mm System requirements - Device with UVC support - Windows 10/10-64/11 - DirectX 9.0c or higher - Linux Kernel 2.6.15 or higher with Video4Linux Package contents - Camera module.
€98,20
