Description

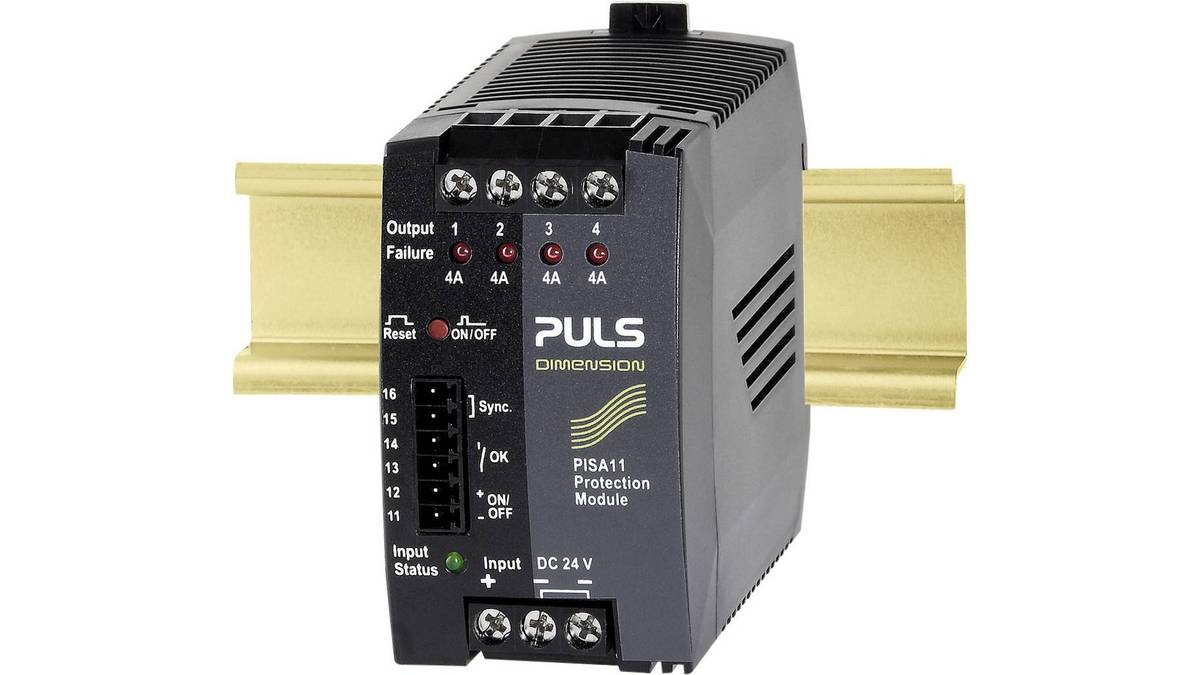

The PULS DIMENSION PISA11.404 is a 4-channel protection module engineered for 24 V DC installations. Each of its four outputs delivers up to 4 A, with a combined maximum output of 16 A. An internal input gate prevents the supply voltage from dropping below 21 V. Status and error LEDs provide instant diagnostics, and screw-terminal connections simplify wiring. It carries UL 508, UL 2367, UL 60950-1 and NEC-Class-2 certifications.
Key Features
- 24 V DC input
- 4 × 4 A outputs
- 16 A total output
- Maintains minimum 21 V supply
- LED status and error indicators
- UL and NEC-Class-2 approvals
Specifications
Brand: PULS
Model Number: PISA11.404
Product Type: protection module
Power Source: 24 V/DC
Weight (g): 140
Width (mm): 45
Height (mm): 75
LED Indicators: status and error
Manufacturer Reference: PISA11.404
Input Voltage Min V: 18
Input Voltage Nom V: 24
Input Voltage Max V: 30
Output Channels: 4
Output Current Per Channel A: 4
Protection Voltage Level V: 21
Certifications: UL 508, UL 2367, UL 60950-1, NEC-Class-2
€145,50
