Description

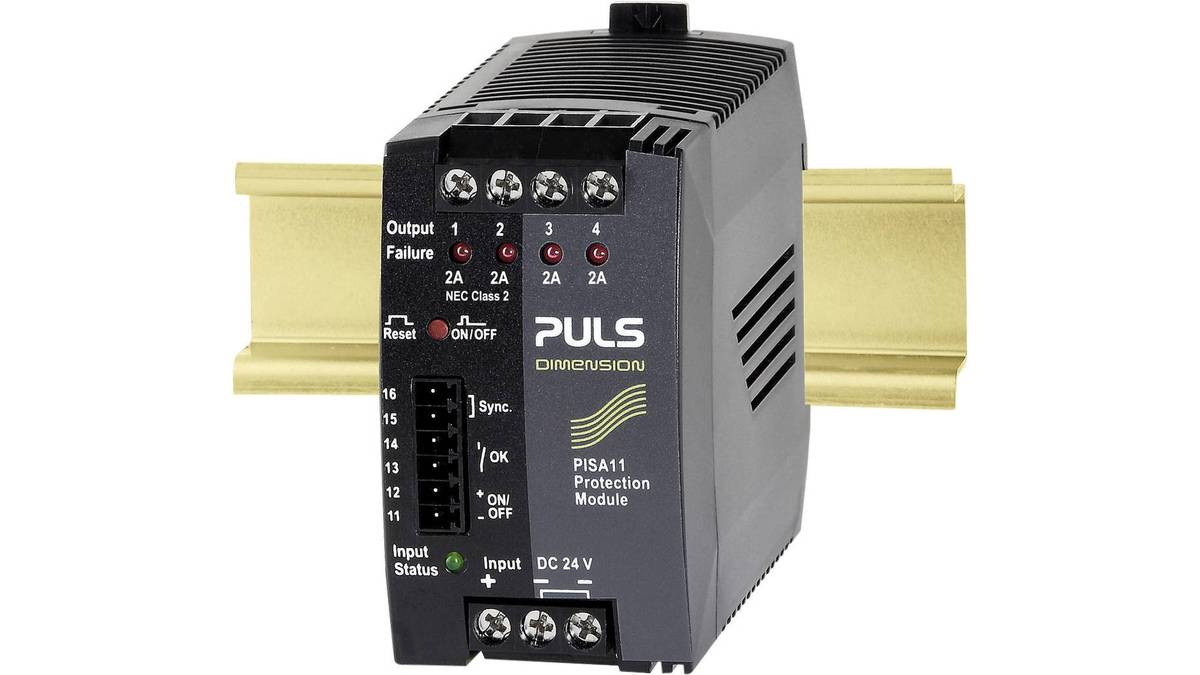

The PULS DIMENSION PISA11.402 is a 4-channel protection module providing additional voltage control for 24 V DC systems. It integrates adjustable input current gating to maintain the supply above 21 V and offers four screw-terminal outputs rated at 2 A each. Status and error conditions are shown via dual LED indicators. UL 508, UL 2367, UL 60950-1 and NEC-Class-2 approvals certify its industrial reliability.
Key Features
- 24 V DC input
- 4 × 2 A outputs
- Maintains minimum 21 V supply
- LED status and error indicators
- UL 508, UL 2367, UL 60950-1, NEC-Class-2
Specifications
Brand: PULS
Model Number: PISA11.402
Product Type: protection module
Power Source: 24 V/DC
Weight (g): 140
Width (mm): 45
Height (mm): 75
LED Indicators: status and error
Manufacturer Reference: PISA11.402
Input Voltage Min V: 18
Input Voltage Nom V: 24
Input Voltage Max V: 30
Output Channels: 4
Output Current Per Channel A: 2
Protection Voltage Level V: 21
Common Shutdown On Fault: true
Certifications: UL 508, UL 2367, UL 60950-1, NEC-Class-2
€145,50
