Description

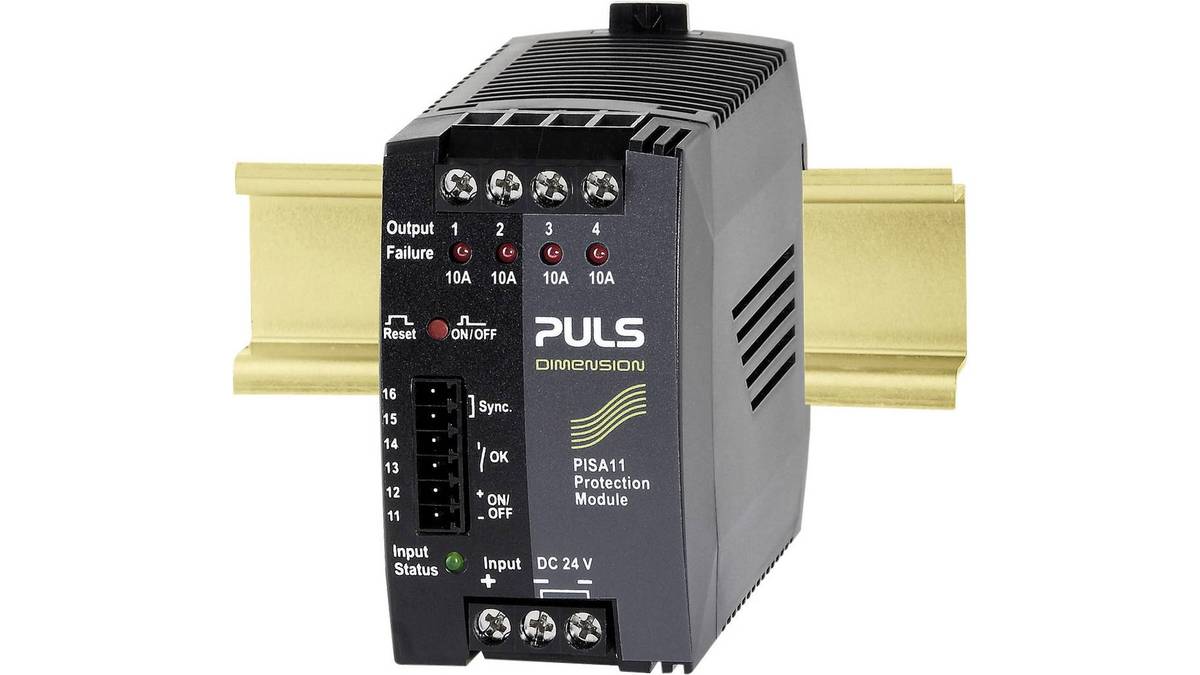

The PULS DIMENSION PISA11.410 protection module offers four 10 A outputs for 24 V DC power systems. It features built-in voltage maintenance to hold the supply above 21 V under fluctuating loads. Dual LED indicators display operational and fault states. Screw-terminal connection and a compact 45 × 75 mm housing support easy panel integration. UL 508, UL 2367, UL 60950-1 and NEC-Class-2 certifications ensure compliance.
Key Features
- 24 V DC input
- 4 × 10 A outputs
- 20 A total output
- Maintains minimum 21 V supply
- LED status and error indicators
- UL and NEC-Class-2 approvals
Specifications
Brand: PULS
Model Number: PISA11.410
Product Type: protection module
Power Source: 24 V/DC
Weight (g): 140
Width (mm): 45
Height (mm): 75
LED Indicators: status and error
Manufacturer Reference: PISA11.410
Input Voltage Min V: 18
Input Voltage Nom V: 24
Input Voltage Max V: 30
Output Channels: 4
Output Current Per Channel A: 10
Protection Voltage Level V: 21
Certifications: UL 508, UL 2367, UL 60950-1, NEC-Class-2
€170,67
