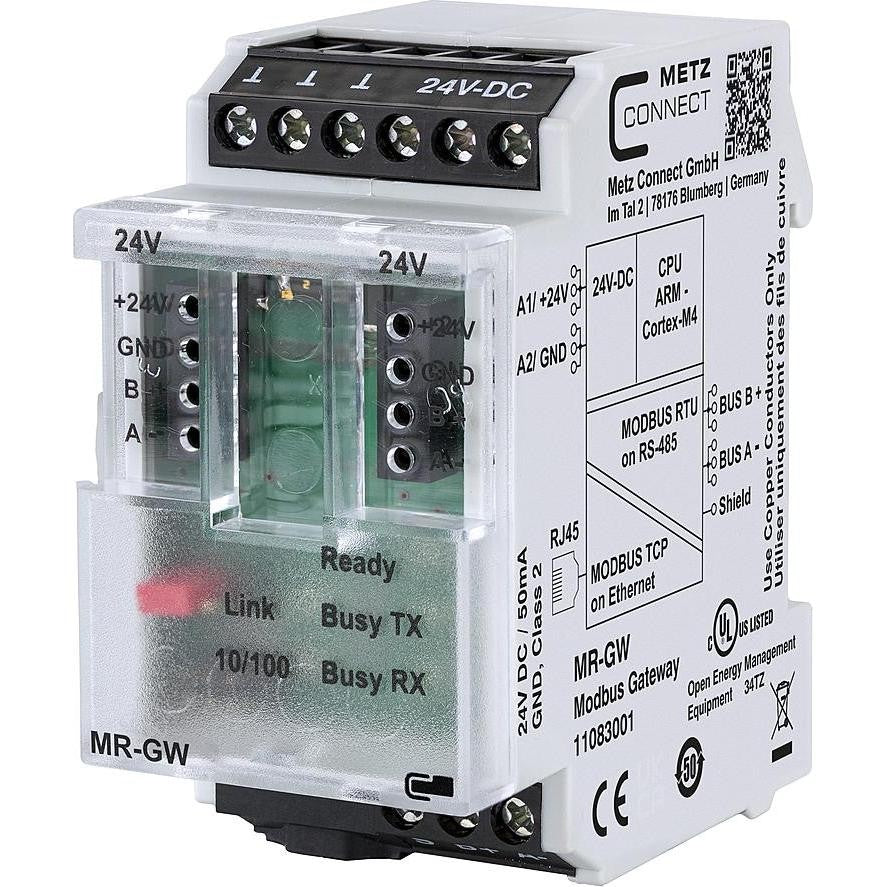

The MR-(F)-GW is a compact Modbus RTU / Modbus TCP gateway. It enables bidirectional data exchange between Modbus RTU field devices and a Modbus TCP master (client). The MR-(F)-GW can operate in two modes: as a transparent gateway in Modbus RTU over TCP mode or as a protocol converter (Modbus TCP mode). The MR gateway can be connected to Modbus RTU devices from METZ CONNECT via two 4-pin terminals on the front of the device and a jumper connector. An integrated web server is used for parameterization, management, and monitoring of the two interfaces (Ethernet / RS485). The web interface is also used for firmware updates. The MR gateway is suitable for decentralized installation in control cabinets or cabinets on TH35 mounting rails according to IEC 60715. It enables simultaneous access by 32 Modbus TCP clients and bidirectional data exchange between Modbus RTU slave devices and a Modbus TCP master (client). The supported protocols are Modbus RTU over TCP (transparent gateway), Modbus TCP/IP v1.0b, and HTTP 1.0. Intuitive, software-independent configuration is via the web interface. A simple search for METZ CONNECT Modbus RTU devices on the RS485 bus is available, as well as quick connection of METZ CONNECT Modbus RTU devices via proven bridge connector technology. The device offers 3-way electrical isolation (RS485-Ethernet-Power) and status monitoring of TCP and RS485 communication.
€297,46
