Description

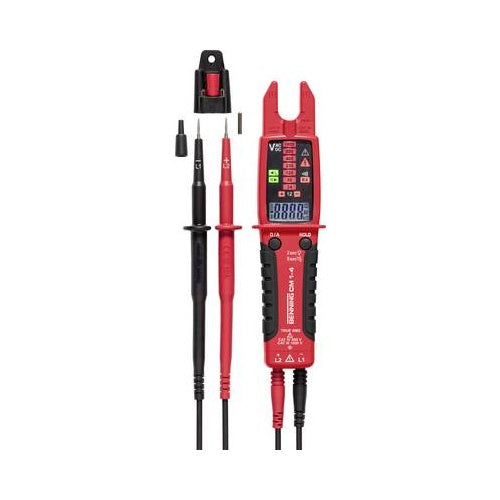

The BENNING CM 1-4 is a True RMS digital clamp meter rated CAT III 1000 V and CAT IV 600 V. It measures AC/DC voltage up to 1000 V and AC current up to 200 A via its 16 mm jaw opening without affecting surrounding conductors. The meter offers phase rotation and single-conductor phase detection via LED indicators, as well as continuity and polarity tests with audible buzzer feedback. Powered by two AAA batteries, it displays readings on a 6000-count digital screen.
Key Features
- True RMS measurement
- Voltage measurement up to 1000 V AC/DC
- Current measurement up to 200 A AC
- CAT III 1000 V and CAT IV 600 V safety rating
- 6000-count digital display
- Phase rotation and continuity tests
Specifications
Brand: BENNING
Model Number: CM 1-4
Product Type: Clamp meter
Power Source: 2x AAA batteries
Measurement Method: True RMS
Display Counts: 6000
Safety Ratings: CAT III 1000 V, CAT IV 600 V
Voltage Ac Max V: 1000
Voltage Dc Max V: 1000
Current Ac Max A: 200
Resistance Range Ohm Min: 1
Resistance Range Ohm Max: 50000
Clamp Opening Mm: 16
Width (mm): 270
Height (mm): 100
Length (mm): 80
Weight (g): 550
€418,38
