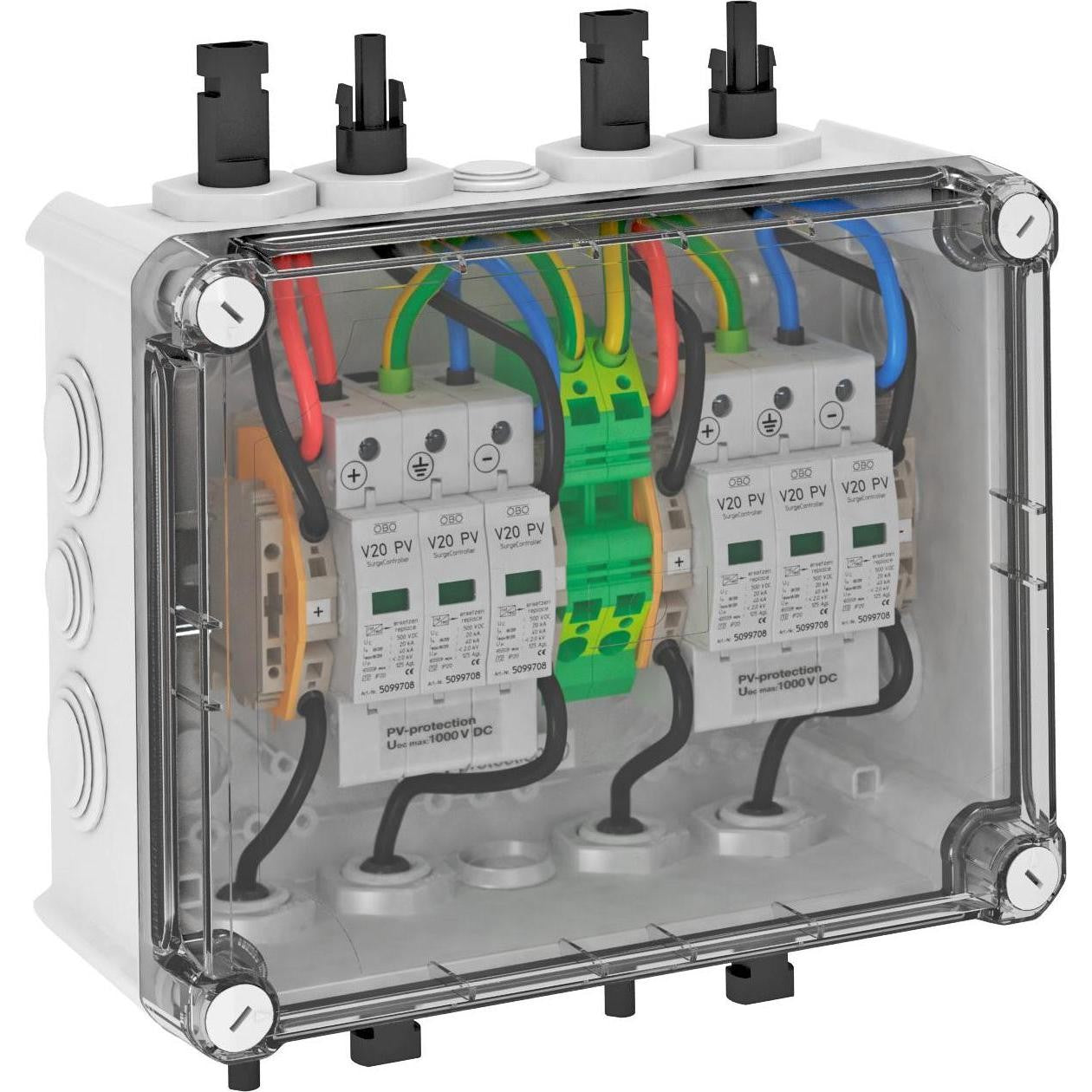

OBO Bettermann PV system solution PVG-C1000S110 Manufacturer: OBO Bettermann Designation: PV system solution in housing Type: PVG-C1000S110 Network form DC: Yes Network form IT: No Network form TN: No Network form TN-C: No Network form TN-CS: No Network form TT: No Network form other: Yes Max. leakage current (8/20): 40 kA Max. direct voltage DC: 1000 V Max. PV voltage: 1000 V Mounting type: Other Dimension: Other Max. conductor cross-section rigid (solid/multi-wire): 35 mm2 Max. conductor cross-section flexible (fine-wire): 35 mm Max. conductor cross-section flexible (flexible): 25 mm2 Signalling on the device: Optical Protection class (IP): IP66 Further details: Type 2 system solution with MC4 connector for PV inverters with 2 separate MPP trackers. Varistor arrestor, pluggable with disconnection device in fault-resistant Y-circuit according to VDE 0100-712 (50539-12). Low DC protection level: 4.0 kV (Uoc max 1000V DC at V20-C/0-500PV). One PV string input (MC4 connector) to one MPP-WR input, up to 30A DC per terminal. Pre-assembled in polycarbonate housing (IP66), UV-resistant for outdoor use. For DC protection of the inverter of PV systems. If there is a risk of condensation due to wind, ice, temperature or sun, additional measures may be necessary! EAN: 4012196816088.
€312,38
