Description

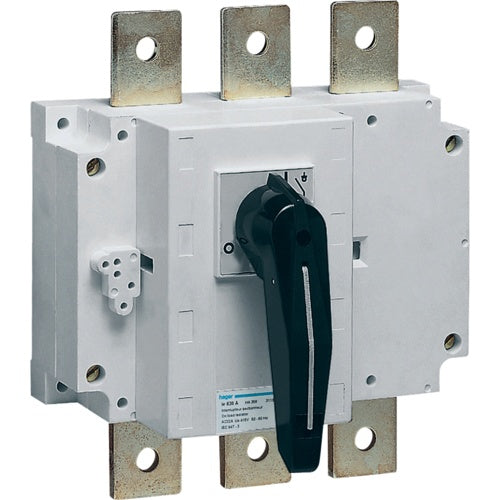

The Hager HA354 is a fixed, three-pole load-break switch rated for 250 A in low-voltage distribution and control-panel installations. It supports AC-21 and AC-22 currents at 250 A and AC-23 currents at 200 A under 380–415 V AC, with a making capacity of 15.3 kA and a short-time withstand current of 9 kA for one second. The device is operated via a long rotary handle that can be locked to prevent unauthorized or accidental switching, and it carries IP 00 protection. Intended for professional switchboard or distribution-panel use, it operates between −20 °C and 70 °C.
Key Features
- 3-pole configuration
- 250 A rated current
- 380–415 V AC operational voltage
- Long rotary handle with lock
- 15.3 kA making capacity at 415 V
- IP00 protection
Specifications
Brand: Hager
Model Number: HA354
Product Type: Load-break switch
Number Of Poles: 3
Rated Operational Current Ac 21 A: 250
Rated Operational Current Ac 23 A: 200
Rated Operational Voltage Ac V: 415
Rated Short Circuit Making Capacity Ka: 15.3
Rated Short Time Withstand Current Ka: 9
Rated Short Time Withstand Duration S: 1
Protection Rating: IP00
Minimum Operating Temperature C: -20
Maximum Operating Temperature C: 70
Product Height Mm: 160
Product Width Mm: 180
Product Depth Mm: 130
Weight (g): 8000
