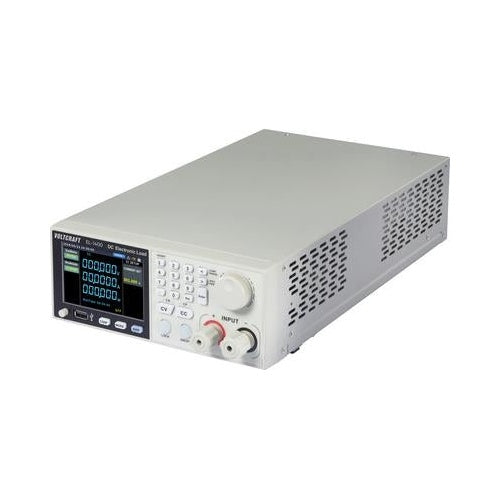

High-Precision Load Simulation for Power Sources: The Voltcraft EL-1400 DC is suitable for a wide range of applications, such as testing power supplies, batteries, and chargers. It offers constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CP) load regulation. Furthermore, it integrates functions such as dynamic current testing up to 10 kHz and remote compensation. It features one output, and the load values are adjustable up to a maximum of 150 V, 40 A, and 400 W. Safe Operation: To ensure safe operation, the Voltcraft EL-1400 DC is protected against overvoltages, overloads, overcurrent, and overheating. Parallel control supports up to 10 devices and is also suitable for potentially power-intensive applications. Convenient Data Display: All data is displayed on the easy-to-read 10 cm (3.9-inch) TFT color LCD display. In addition, a USB port and an RS232 standard interface for SCPI protocols are available. Mounting and Accessories: For stand-alone operation, the Voltcraft EL-1400 DC is equipped with fold-out feet. For rack mounting, the power supply requires two rack units at half the rack width. A power cord, user manual, and safety data sheet are supplied with the unit.
€938,70
