Description

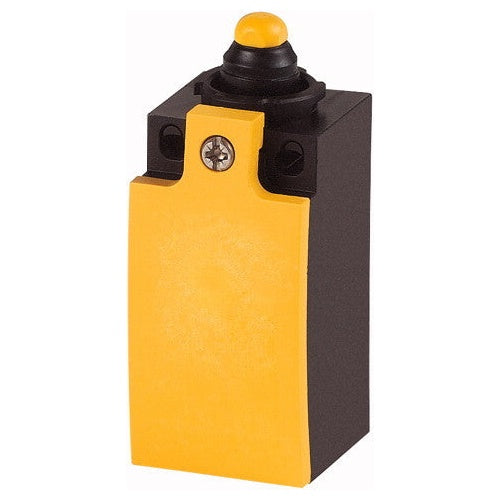

The Eaton 266109 LS-11 is an LS-Titan Series plunger limit switch featuring snap-action operation and dual contact configuration (NO/NC). It accommodates AC voltages up to 415 V and DC voltages up to 220 V with a maximum current rating of 6 A. The robust plastic housing offers IP66 and IP67 protection ratings for use in harsh environments. Its compact footprint measures 33.5 mm in length, 31 mm in width, and 76.5 mm in depth, with an operating temperature range from -25 °C to 70 °C.
Key Features
- Snap-action plunger switch
- NO/NC contact configuration
- 415 V AC & 220 V DC max voltage
- 6 A maximum current
- IP66 & IP67 protected
- Plastic housing
Specifications
Brand: Eaton
Model Number: 266109 LS-11
Product Type: plunger limit switch
Material: Plastic
IP Rating: IP66, IP67
Contact Configuration: NO/NC
Max Ac Voltage V: 415
Max Dc Voltage V: 220
Max Current A: 6
Action Type: Snap Action
Length (mm): 33.5
Depth (mm): 76.5
Width (mm): 31
Maximum Operating Temperature C: 70
Minimum Operating Temperature C: -25
€69,84
