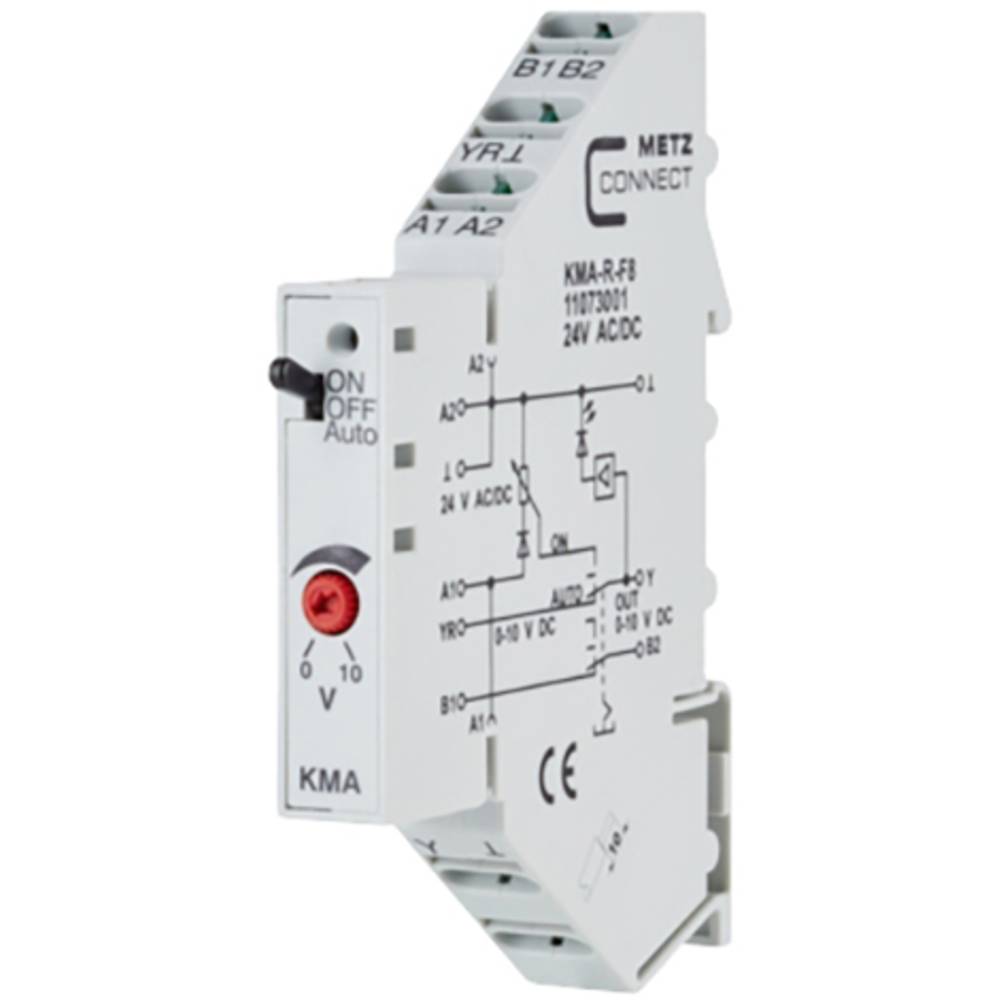

The analog encoder is used for manual control variable adjustment, e.g., for mixing valves, valve positions, temperature values, etc. The module can be controlled by two operating modes, which are set via the three-position switch (ON, OFF, AUTO) on the front panel. The switch position is reported back via the external control contact terminals B1 and B2. Switch position ON: The control variable can be adjusted with the potentiometer on the front panel. The output signal 0 to 10 V is available at terminal Y. AUTO switch position: The control variable is switched through to the control variable output Y via terminal YR without change. Connection with spring-loaded terminals (push-in), setpoint generator, manual operating level with feedback, LED brightness proportional to the control variable, back-voltage protected.
€67,90
