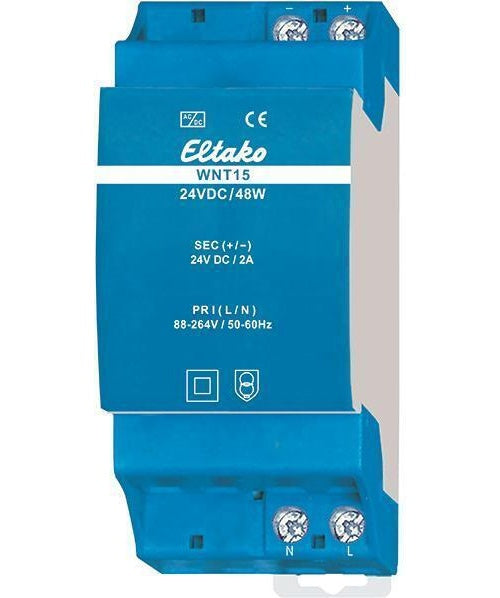

Wide-range switching power supply, rated power 24/48 W, standby loss only 0.1/0.2 watts. Modular device for mounting on DIN EN 60715 TH35 rails. 1 module width: 18 mm, 58 mm deep. 2 modules width: 36 mm, 58 mm deep. For loads greater than 50% of the rated power, and always when switching power supplies are installed next to each other, as well as with dimmers, a 1/2 module ventilation gap is required on both sides using DS12 spacers. Wide-range input voltage 88–264 V AC (110 V -20% to 240 V +10%). Efficiency 91%. Stabilized output voltage 1%, low ripple. Short-circuit proof. Overload and overtemperature protection by shutdown with automatic restart after fault correction (auto-recovery function). Supply voltage type AC 1. Output voltage 24 - 24 V Max. output current 1.2 A Adjustable output voltage no Nominal output voltage 1.24 V Short-circuit proof yes Rated supply - Installation material Meter screw/Distribution board DIN rail installation device - Eltako WNT15-24VDC/48W Wide-range switching power supply 20000075.
€88,23
