Description

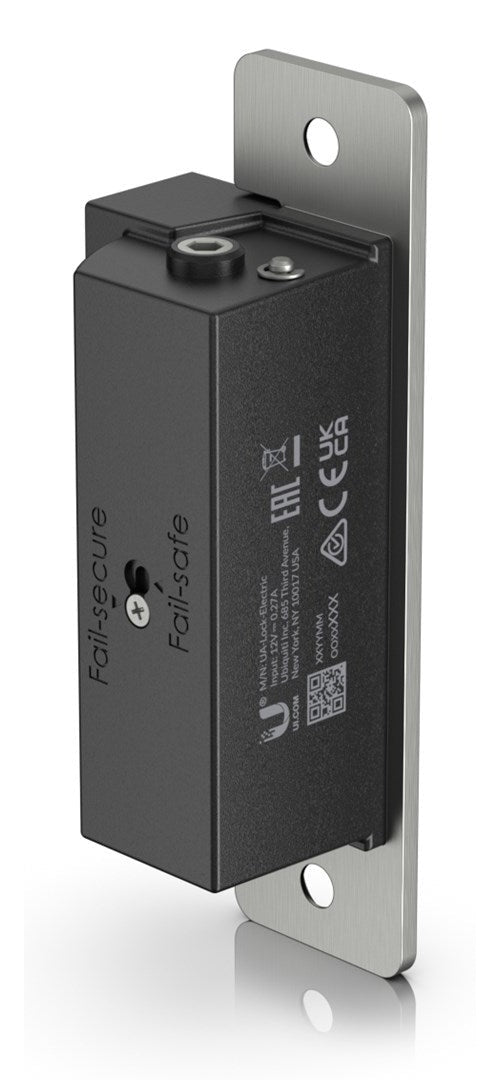

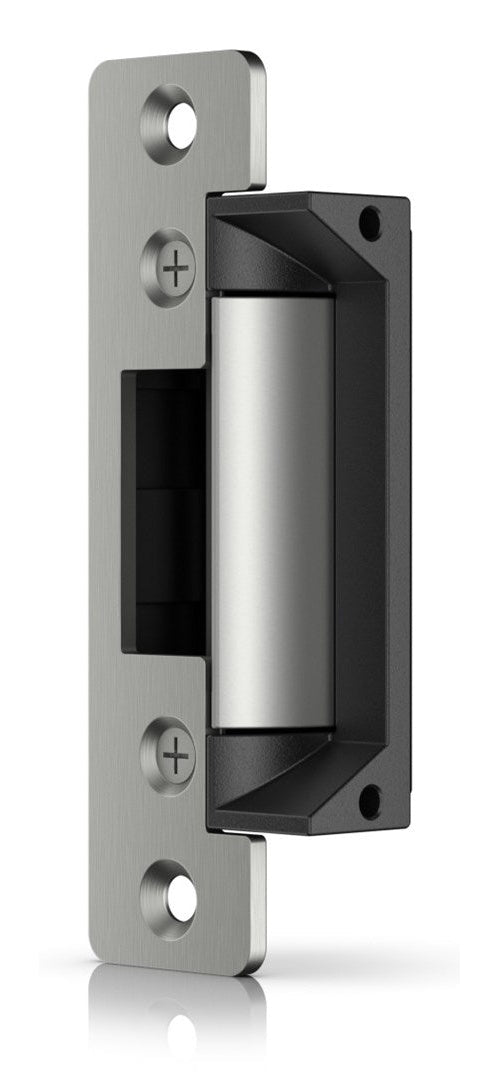

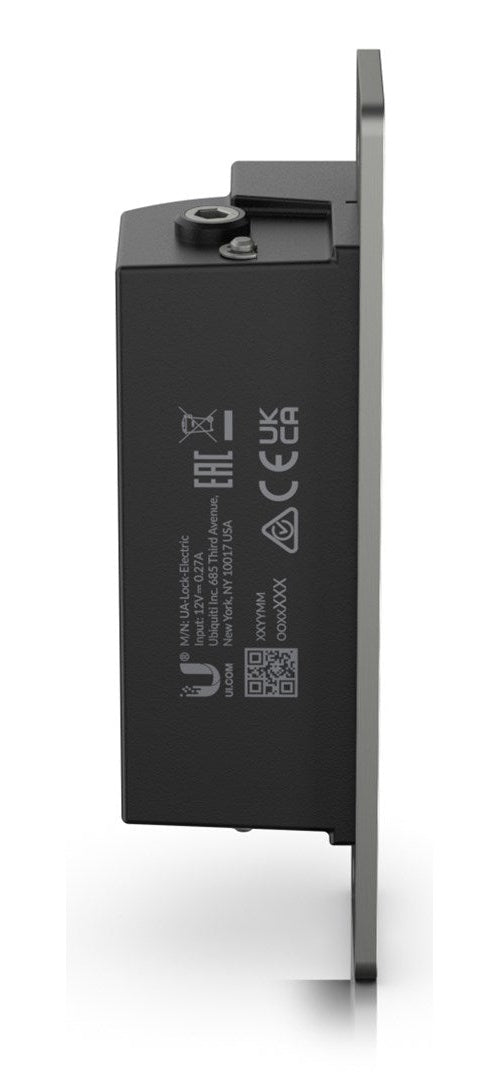

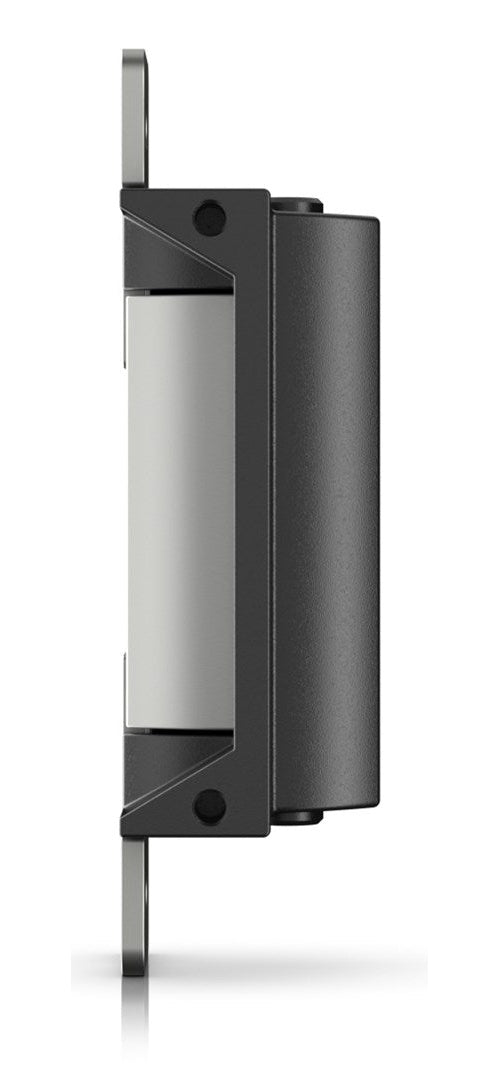

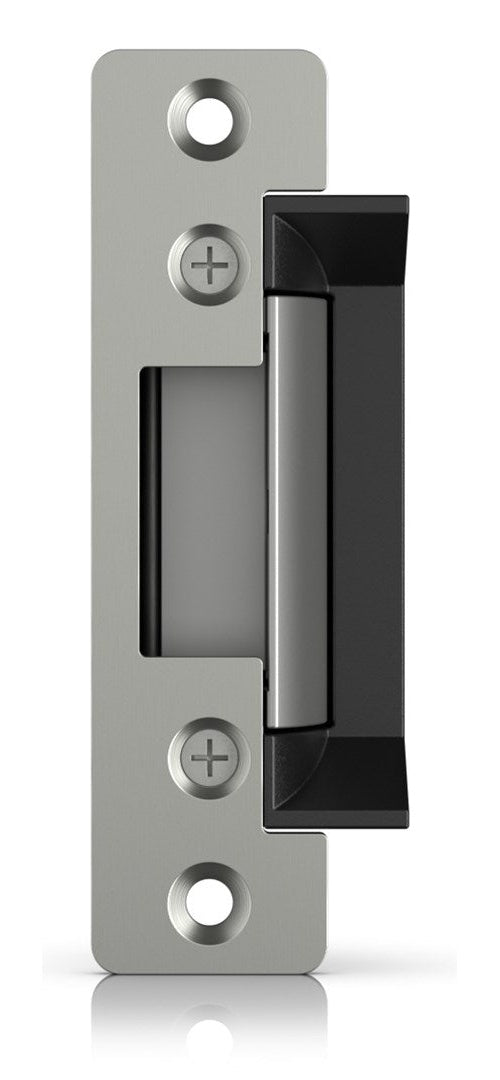

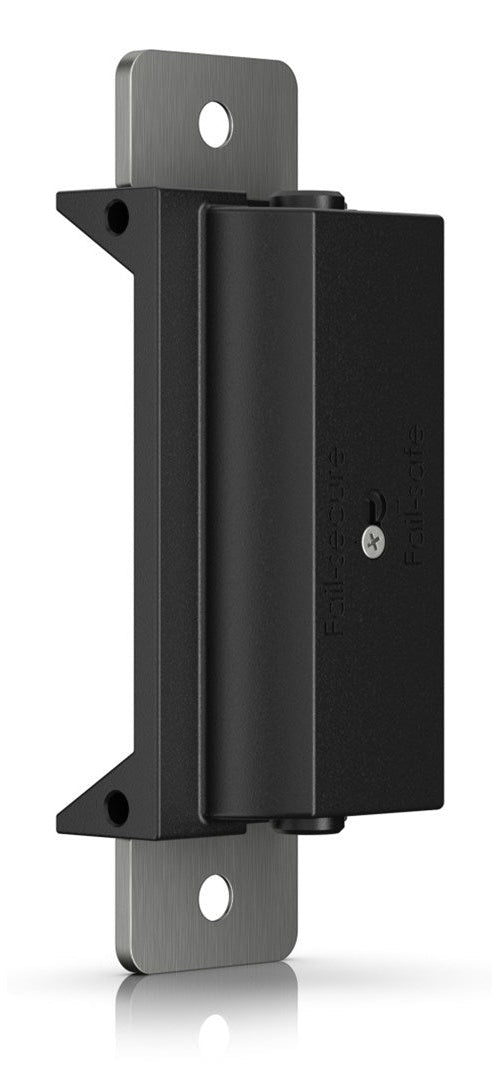

The Ubiquiti UA-Lock-Electric is a fail-secure electric lock operating at 12 V DC with a holding force of up to 1200 kg. It features a zinc alloy body with a stainless steel front panel and deadbolts, connecting via NO and COM screw terminals. This lock integrates with UniFi Access hubs including UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra and UA-Hub-Gate, drawing approximately 400 mA during operation. Rated for temperatures from -10 °C to 45 °C, it carries FCC, IC and CE certifications and meets NDAA requirements.
Key Features
- Fail-secure electric lock
- 1200 kg holding force
- 12 V DC operating voltage
- Compatible with UniFi Access hubs (UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra, UA-Hub-Gate)
- Zinc alloy body with stainless steel front panel
- Connects via NO and COM screw terminals
Specifications
Brand: Ubiquiti
Model Number: UA-Lock-Electric
Product Type: electric lock
Power Source: 12 V DC
Current Draw Ma: 400
Holding Force Kg: 1200
Material: Zinc alloy and stainless steel
Compatibility: UniFi Access hubs (UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra, UA-Hub-Gate)
Operating Temperature Range C: -10 to 45
Certifications: FCC, IC, CE, NDAA
Connection Type: screw terminals (NO and COM)
Protection Features: fail-secure
€135,85
