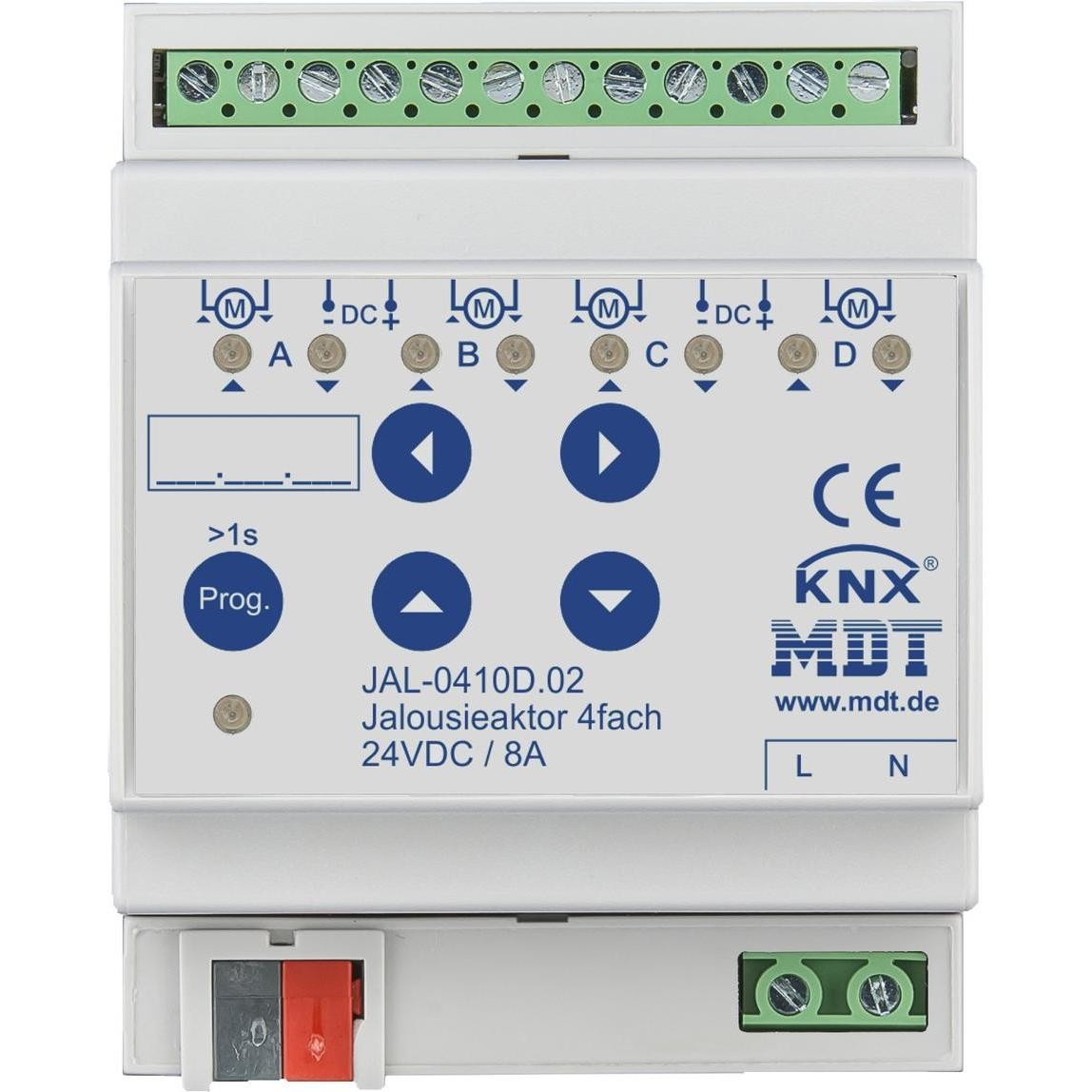

MDT technologies 4-fold curtain actuator JAL-0410D.02. Manufacturer: MDT technologies. Designation: 4-fold curtain actuator REG, 8A, 24VDC. Type: JAL-0410D.02. KNX bus system: Yes. KNX radio bus system: No. Radio bus system: No. LON bus system: No. Powernet bus system: No. Other bus systems: None. Bidirectional radio: No. Mounting type: REG. Width in step units: 4. With bus coupling: Yes. Removable bus module: No. On-site/manual operation: Yes. With LED display: Yes. Ohmic switching current: 8 A. Max. switching capacity: 180 W. Max. number of curtain outputs: 4. Switching function: No. Current type: DC. Protection type (IP): IP20. MDT technologies 4-fold curtain actuator JAL-0410D.02: More details. 4-fold awning actuator, 4HP, REG, 8A, 24VDC. For 24VDC motors up to 180W. With sun position calculation. Lockable manual operation and LED display per channel. Awning/roller blind operating mode. Practical ventilation function (window open/tilted). Automatic shading/slat tracking with sun position calculation. Freely adjustable run, pause and step times. Separate run times for up/down adjustable. Push button operation for precise positioning. Extended 1Bit automatic positions and scene functions. 1Byte absolute positioning for height and slats. Warning, central and block functions. Individually adjustable behavior after warning and block. Priority/forced control with automatic recovery time. For 24VDC motors with 2 connections. Integrated circuit for pole change. Adjustable behavior in case of bus voltage failure/recovery. Quick application download (long frame support for ETS5). EAN: 4251916130619.
€262,66
