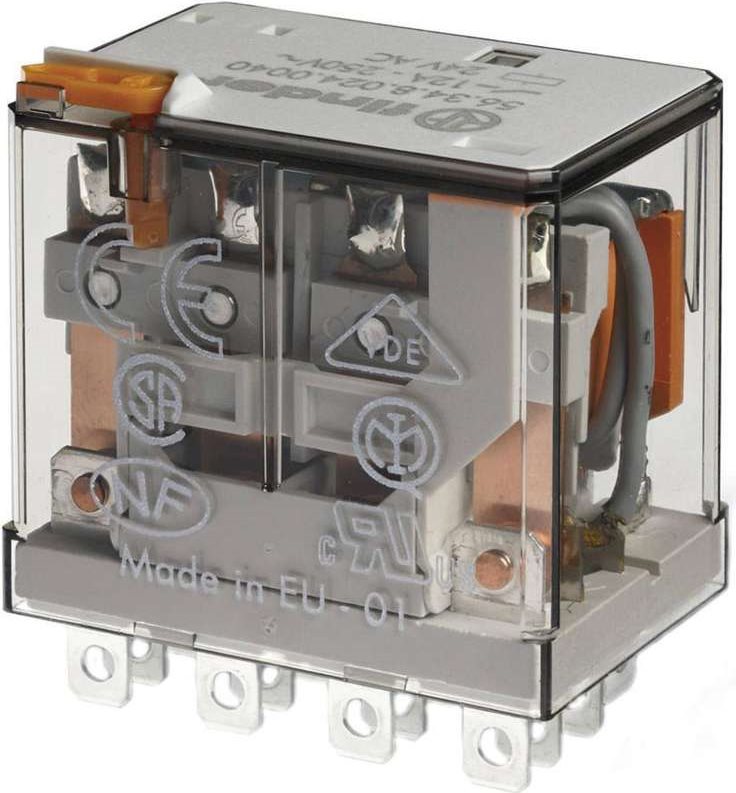

Description: Power plug-in relay. Features: Test button, mechanical indicator. Technical data: Connection (components): 4.8 mm flat connector. Response voltage (max.): 121 V/AC. Response voltage (min.): 88 V/AC. Control type: Monostable, 1 coil. Contact type (LOV): 4 changeover contacts. Contact material: AgNi. Nominal coil voltage: 110 V/AC. Product dimensions, width: 27.7 mm. Product dimensions, height: 37.1 mm. Product dimensions, length: 40.8 mm. Relay type (categorization): Plug-in relay. Switching capacity (max.): 3000 VA. Switching voltage (max.): 400 V/AC. Switching current (max.): 12 A. Protection class: Relay protection class RT I. Type: 56.34.8.110.0040. Resistance (coil): 1900 Ω.
€73,30
