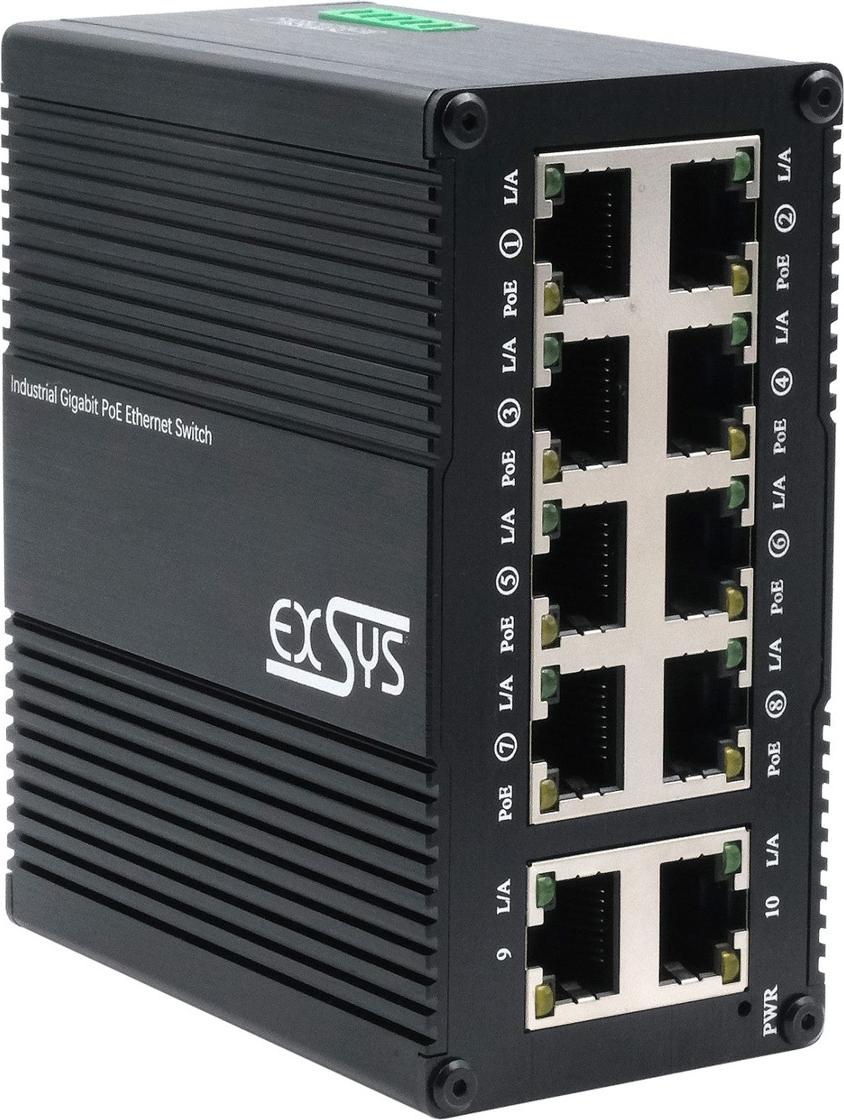

The extremely compact and industrial-grade EX-62026PoE 10-port Gigabit PoE switch offers full Gigabit performance across all 10 ports despite its very small external dimensions. Eight downlink ports each provide up to 30 W for connecting PoE devices (PDs) such as IP cameras or IP phones. Thanks to its rugged metal casing and wide operating temperature range of -40°C to 80°C, it is suitable for a variety of applications, even in harsh environments. Power is supplied via the terminal block (12-48 VDC) and can be configured for redundancy to reduce downtime. The EX-62026PoE supports Auto-MDI/MDI-X and Auto-Negotiation. 10-Port 10/100/1000T Gigabit Ethernet Switch Powers up to 8 remote PoE network devices, transmits data and power over the same cable Fully compliant with IEEE 802.3af PoE (PSE) Type 1 15.40W and IEEE 802.3at PoE+ (PSE) Type 2 34.20W Maximum Power Delivery (PD): Type 1 12.95W / Type 2 25.50W Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B Auto-MDI/MDIX eliminates the need for crossover cables Supports Auto-Negotiation and 10/100 Mbps Half/Full Duplex and 1000 Mbps Full Duplex Supports Jumbo Frames up to 9 KBytes Plug and Play, no configuration and installation required Terminal Block for redundant DC input, 12V up to 48V VDC Scales input voltage to PoE voltage range (42-57 VDC) Very compact, rugged metal enclosure, IP40 DIN rail mounting kit included Wide operating temperature range from -40°C to +80°C Package contents: EX-62026PoE, DIN rail kit (pre-assembled), manual.
€200,14
