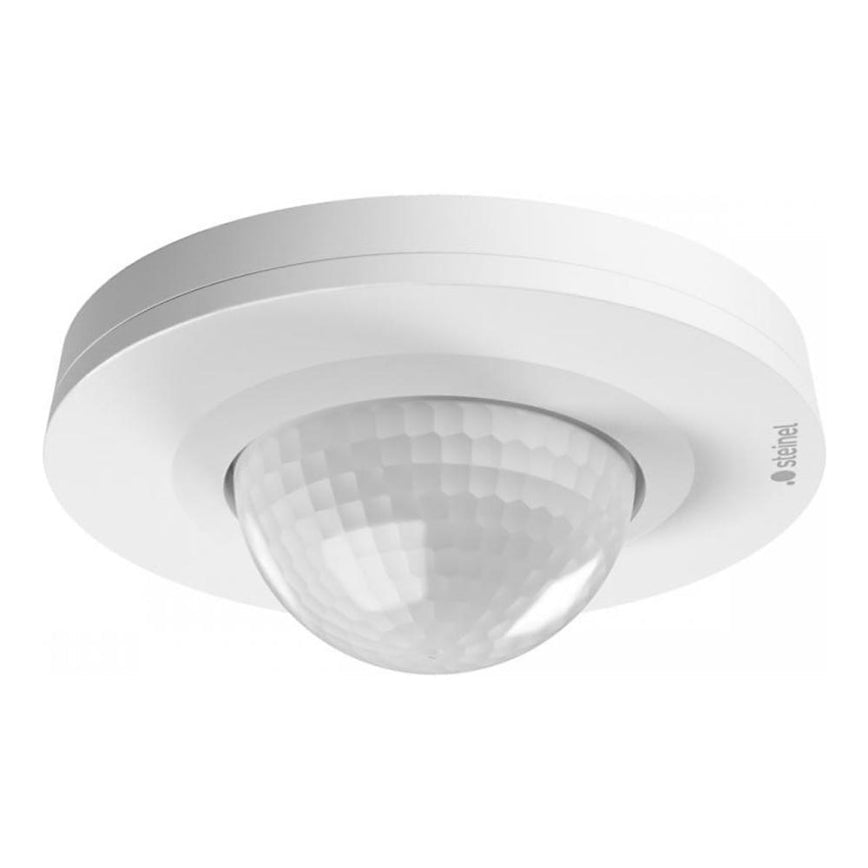

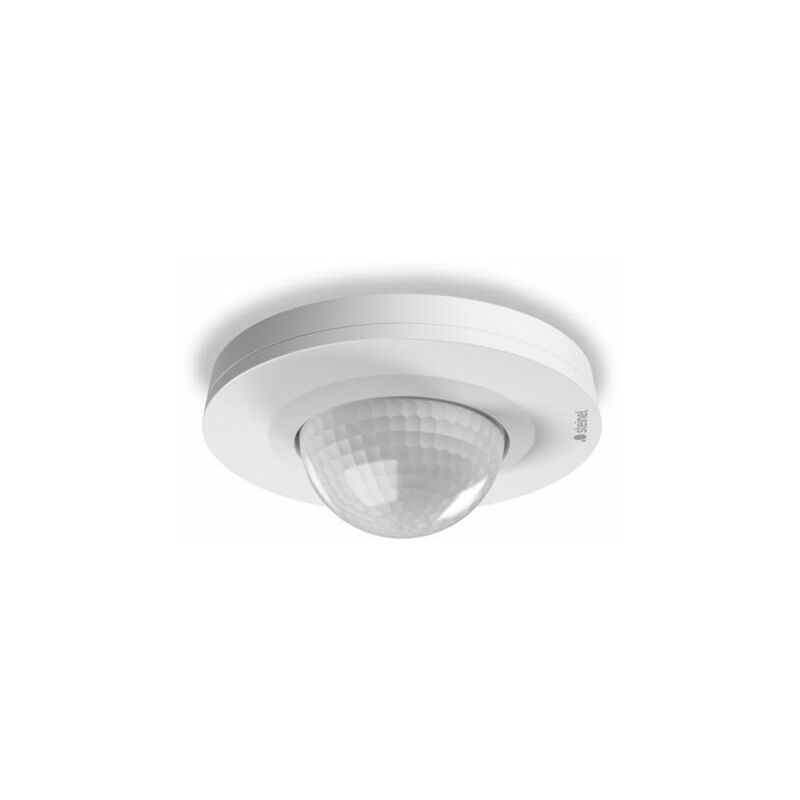

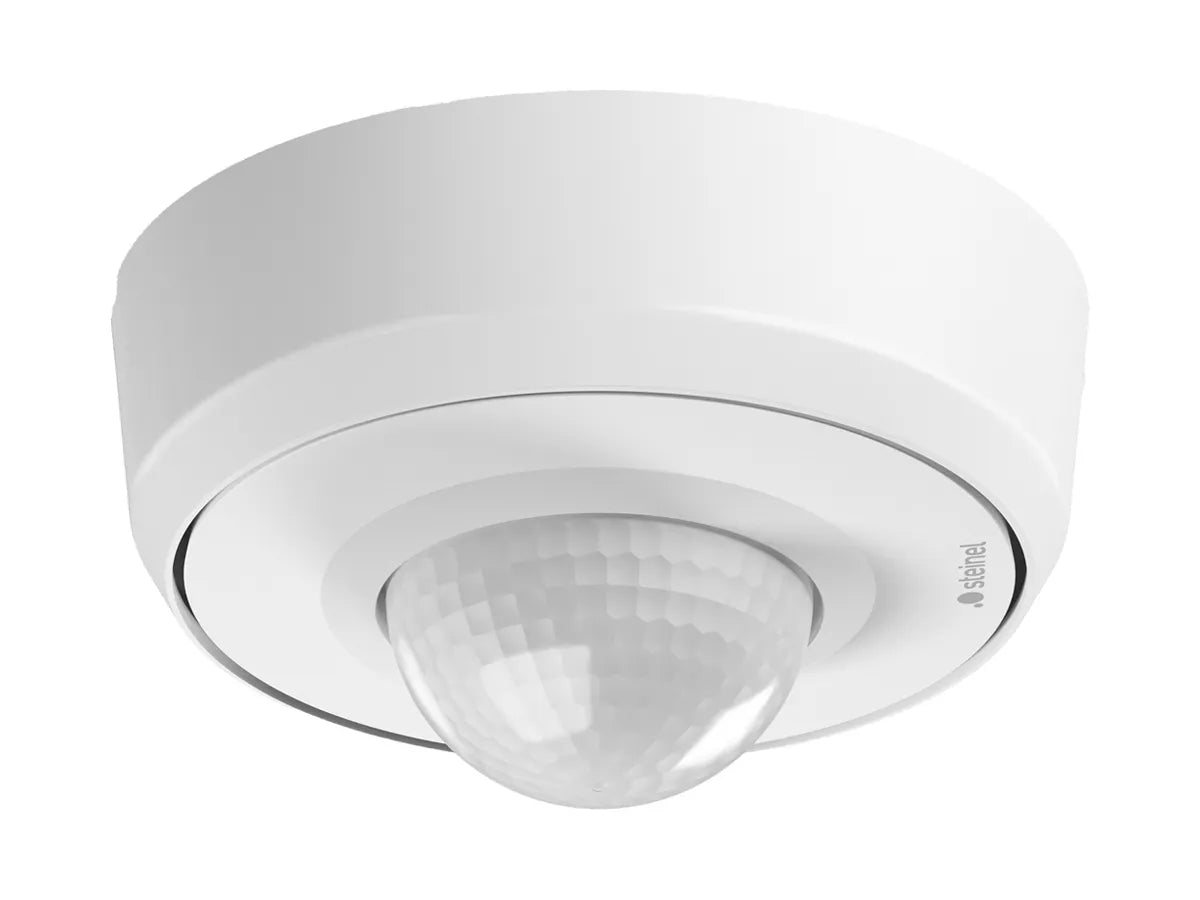

Steinel PD IR 4360-24 IR presence detector. Manufacturer: Steinel. Designation: Flush-mounted IR presence detector. Type: PD IR 4360-24. KNX bus system: Yes. KNX radio bus system: No. Radio bus system: No. LON bus system: No. Powernet bus system: No. Other bus systems: Non-radio. Bidirectional: No. Mounting type: Flush-mounted. Material: Plastic. Material quality: Other. Color: White. Transparent: No. With bus coupling: Yes. Extension unit input: No. Operating mode switch: No. Optimal mounting height: 2.8 m. Maximum range on one side: 12 m. Maximum range frontal: 12 m. Detection field diameter on the floor: 5.5 m. Horizontal detection angle: 360 degrees. Number of channels: 2. Minimum depth of the device housing: 30 mm. Steinel PD IR 4360-24 IR presence detector: more details. Motion detection, presence detection, and light measurement for offices, meeting rooms, corridors, etc. The sensNORM-compliant 360-degree IR presence detectors are ideal for standard sensor-based requirements in the real estate sector. With COM1, KNX, and DALI-2 IPD interfaces. With KNX with 2 light outputs including constant light control, logic gate, and other outputs and functions such as day/night switching and sabotage protection. Motion detection range: 8 m or 24 m. Presence detector function with a detection range of 6 m or 7.5 m. Color-matched plug-in cover caps included. For recessed, surface-mounted, and ceiling installation. Setup and operation via KNX and ETS bus. Programming mode can be activated remotely with the Smart Remote app. Easy to install thanks to the magnetic mounting bracket. LED feedback for safe commissioning. Maximum installation height 4 m. Current consumption of 15 mA at 24 V. Available in black or white. EAN: 4007841086152.
€175,88
