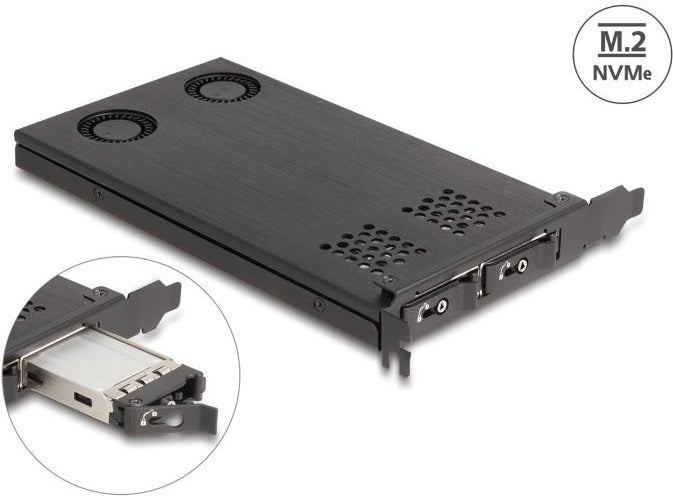

This removable frame from Delock can be installed in a PC slot on your computer and offers two M.2 slots in the 2280, 2260, 2242, or 2230 formats. Quick SSD swapping Thanks to a special mechanism, SSDs can be swapped quickly and easily. For example, you can remove data backups and store them in a safe place. Enclosure with lock and suspension To ensure that only authorized persons can remove the drive, the removable frame is equipped with a key lock. The sturdy metal holder has springs at both the top and bottom to absorb vibrations, thus making it suitable for use in mobile devices. Note: It is important to ensure that the enclosure is fully inserted, otherwise a connection to the SSD will not be possible. Without PCIe bifurcation, only the first M.2 slot on the board can be used. Technical data Connections: PCIe card: 1 x PCI Express x16, V4.0 2 x M.2 Key M slots M.2 slot: 1 x M.2 Key M connector 1 x M.2 Key M slot - Interface: PCIe / NVMe - Supports M.2 modules in the formats 2280, 2260, 2242 and 2230 with Key M or Key B+M on PCIe basis - Maximum component height on the module: 1.5 mm, use of double-sided modules possible - 2 x Fans - 2 x LED indicator - Bootable, from UEFI version 2.3.1 - Metal M.2 slot - Supports NVM Express (NVMe) - Supports SMART - Operating temperature: -40 °C to 85 °C System requirements - Linux Kernel 6.2 or higher - Windows 10/10-64/11 - Windows Server 2022 - PC with a PCI Express slot x16 / x32 free Package contents - Removable frame with 2 x M.2 slot - Heatsink - 2 x IM screw 2.0 x 4.0 mm, head 5.0 mm - 2 x Wrench - Instruction manual.
€241,84
