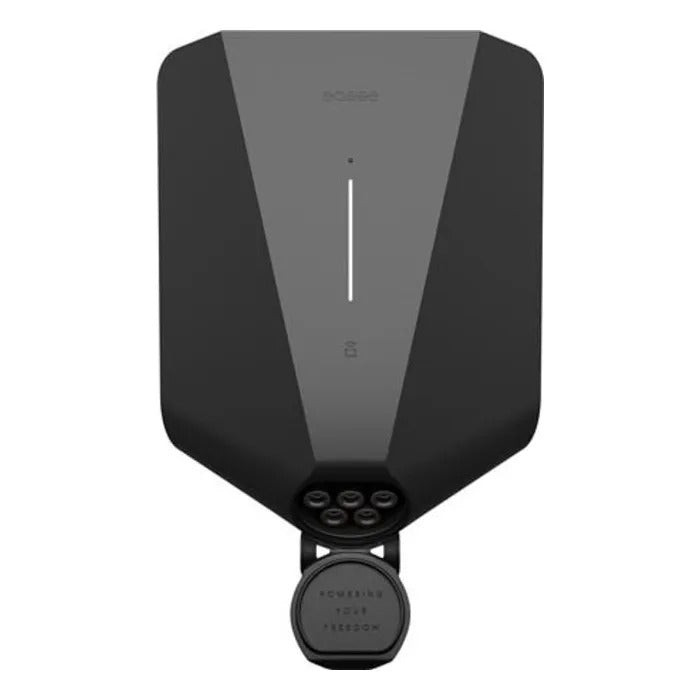

EASEE Charge Core 22kW Mini Smart Charging Station - for Home or Outdoor Company Parking. The EASEE Charge Core wallbox is a single-phase or three-phase charging station (2.3kW to 22kW) with Wi-Fi and RFID connectivity. Its charging current is instantly adjustable between 6A and 32A at any time via the app, allowing it to adapt to your home's available power. The front Type 2 socket is lockable for secure Mode 3 charging of your electric vehicle. Using the EASEE app, you can connect the charging station to your smartphone via Wi-Fi or 4G with the included eSIM. Main features: Single-phase or three-phase power supply; Adjustable mode: Plug & Charge or RFID badge - your choice - adjustable via the EASEE web portal; Adjustable charging power between 2.3kW and 22kW, adjustable via the app; Local Wi-Fi and 4G connection included: access to the EASEE app and the EASEE web portal easee.cloud; Dynamic wireless charging module thanks to the Equalizer module; Terminal block for 10mm² to 16mm² cable; Integrated 6mA DC leakage detector; IP54 and IK10 protection: resistant to heavy rain and impacts; Socket: Type 2. Compatible with all electric vehicles; Solar panel management; Wall mounting kit included; Remote activation/deactivation of charging; Type 2 cable locking mechanism; Scheduling of charging at desired time slots (e.g., to charge only during off-peak hours); Viewing consumption history and total electricity cost; Scalable infrastructure allows up to 101 chargers on a single Single circuit. Automatic phase balancing. Integrated energy meter. Developed and produced in Norway. Plug & Charge or RFID card activation. The charging station operates in Plug & Charge mode or via RFID card. In Plug & Charge mode, charging begins as soon as you connect the cable to your vehicle and the charging station. If you activate RFID mode on the EASEE web portal, only RFID cards encoded in your charging station will be able to initiate charging. Charging time: From 15km (at 3.7kW) to 100km (at 22kW) of additional range per hour of charging. Free lifetime 4G connection included. All Easee charging stations are equipped with an eSIM card for internet access at any time, even if Wi-Fi is unavailable. This connection also allows for easy remote troubleshooting in case of problems. No subscription fees; the 4G connection is free for life. Stylish, compact, and durable, the Easee Charge Wallbox is one of the smallest charging stations on the market. Discreet, lightweight, and practical, it measures 193 x 256 x 106 mm and weighs 1.5 kg. It is also robust (IK10) and resistant to heavy rain (IP54), allowing for outdoor installation without rain protection. Its Norwegian design ensures excellent weather resistance. The Easee Equalizer dynamic charging module measures all electrical consumption and dynamically controls the charging power. Two versions are available for each type of network: single-phase or three-phase. The Equalizer's main functions: Charges as quickly as possible while preventing the main circuit breaker from tripping. Automatically adjusts the charging power. Thanks to the Equalizer: Charge up to 6 times faster. Activate energy sharing to charge multiple vehicles simultaneously. Save money by avoiding the need to change your subscription. Solar charging: Once the Equalizer is installed, you can activate the solar charging function from the Easee App. You will have the choice between two different charging modes to meet your specific needs and preferences: Solar: charge your car using only your solar panels; Grid + solar: charge your car with energy from both the grid and your solar panels. All of this is managed automatically by the Equalizer module. Easee App The Easee app is available on iPhone iOS or Android and allows you to manage the following functions: Modify charging power Automate charging power using the Equalizer (dynamic charging) Manage activation mode: Plug & Charge or RFID badge Monitor and manage different chargers Activate/Deactivate charging remotely Activate "vacation" mode Add and manage RFID badge users Schedule charging at desired time slots (to charge only during off-peak hours, for example) View consumption history and total electricity cost per user Manage solar panels (100% solar or mixed energy) Lock the Type 2 cable in the charging station Electrical Protections Electrical protections are mandatory in France and must be installed on a dedicated line. They have been validated in compliance with the IRVE decree of January 2017, the current French regulations. Electrical protections to be installed for a single-phase installation: A 40A Type A 30mA residual current circuit breaker (e.g., HAGER BDH240F) - not included. A 40A C-curve circuit breaker (e.g., HAGER MJT740) - not included. Electrical protections to be installed for a three-phase installation: A 40A Type A 30mA residual current circuit breaker (e.g., HAGER BDH440F) - not included. Note: Type B is not mandatory as the charging station has a 6mA DC leakage current detector. A 16A to 40A C-curve circuit breaker (depending on the charging station setting) (e.g., HAGER NGT840 for 40A) - not included. PHOENIX CONTACT 5m charging cable: The Phoenix Contact electric vehicle charging cable - type 2 to type 2 - 7.4kW or 22kW - 5m is ideal for charging your type 2 electric car. Cable power: 7.4kW version: Ref. 1627801 22kW version: Ref. 1627692 We recommend choosing the cable best suited to your charging station's configuration. For a single-phase installation, you can choose a 7.4kW cable, and for a three-phase installation, you can choose a 22kW cable. Please also check your vehicle's onboard charger to determine its maximum power output. Carplug Test: The Carplug team successfully tested the EASEE Charge Core charging station. Connecting the power supply is simple thanks to the easily accessible 10mm² terminal block. The electrical protections selected by CARPLUG are compatible and ensure safe operation. The station powers on quickly and is ready to charge in less than a minute. We downloaded the EASEE app, created an account, paired the charging station, and the connection was seamless thanks to the local Wi-Fi connection. 4G automatically replaces Wi-Fi in case of a connection failure. We then plugged in the cable: charging started automatically at the intensity set in the app. If you change the intensity in the app, the charging intensity changes instantly in the car. Overall: Very positive. This charging station is ideal for a garage or a house, indoors or outdoors, for anyone who wants to monitor their energy consumption, manage their charging schedules, and occasionally adjust the charging intensity. Want to learn more about wallboxes? Carplug offers individuals a wide selection of wallboxes in this range. The charging stations offered in this section are models perfectly suited for home use. You'll find products with different capacities, capable of supporting and distributing various power levels: primarily 7kW and 22kW wallboxes. For private, home use, each electric vehicle wallbox is fully secure. Check the power supported by your vehicle and your meter's capacity to select the single-phase or three-phase wallbox that's right for you. A three-phase wallbox can handle higher voltage and deliver greater power. Depending on your electricity consumption and your home, a single-phase wallbox may suffice, or a three-phase model may be more suitable. Sockets and protection solutions to prevent the dangers of electrical overload in a home are also available. Find all the specifications in the product sheets. If you still have any questions, Carplug professionals are available to advise you and guide you through these wallboxes to the model that perfectly meets your needs. Link to all home charging stations. Return to the Homepage.
€925,75
