Description

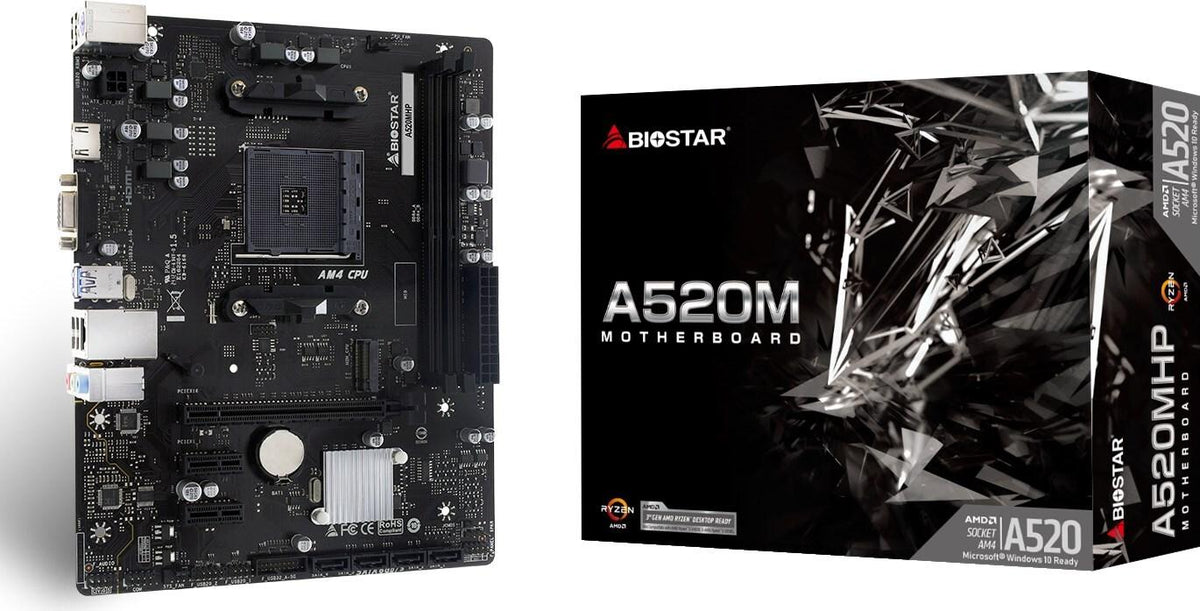

The Biostar A520MHP is a micro ATX motherboard designed for AMD processors with a Socket AM4. This motherboard supports AMD Ryzen 3000, 4000, and 5000 series processors, providing versatility for various builds. It features the AMD A520 chipset, a maximum internal memory capacity of 64 GB across two SO-DIMM slots, and supports DDR4 memory types with clock speeds ranging from 2133 MHz to a maximum of 4400 MHz when overclocked. The A520MHP includes 4 SATA III connectors for storage, and it can accommodate a single M.2 drive along with up to 4 HDDs. Connectivity options include 7.1 channel audio powered by a Realtek ALC897 chip, as well as Gigabit Ethernet through a Realtek RTL8111H LAN controller. This motherboard is also compatible with Windows 10 and 11 operating systems.
Key Features
- Socket AM4 processor socket
- Compatible with AMD Ryzen 3000, 4000, 5000 Series
- AMD A520 chipset
- Supports up to 64 GB internal memory
- DDR4 memory support with max speeds up to 4400 MHz
- 4 SATA III connectors
- Realtek ALC897 audio chip
- Gigabit Ethernet LAN
Specifications
Brand: Biostar
Model Number: A520MHP
Product Type: Motherboard
Weight (g): 650
Width (mm): 60
Height (mm): 230
Depth (mm): 270
Processor Socket: Socket AM4
Maximum Internal Memory: 64
Number Of Memory Slots: 2
Memory Slots Type: SO-DIMM
Supported Memory Types: DDR4-SDRAM
Maximum Memory Clock Speed: 4400
Total Number Of Sata Connectors: 4
Number Of Hdds Supported: 4
Audio Output Channels: 7.1 channels
Lan Controller: Realtek RTL8111H
Usb 2.0 Connectors: 2
Usb 3.2 Gen 1 Connectors: 1
Power Source Type: ATX
€89,68
