Description

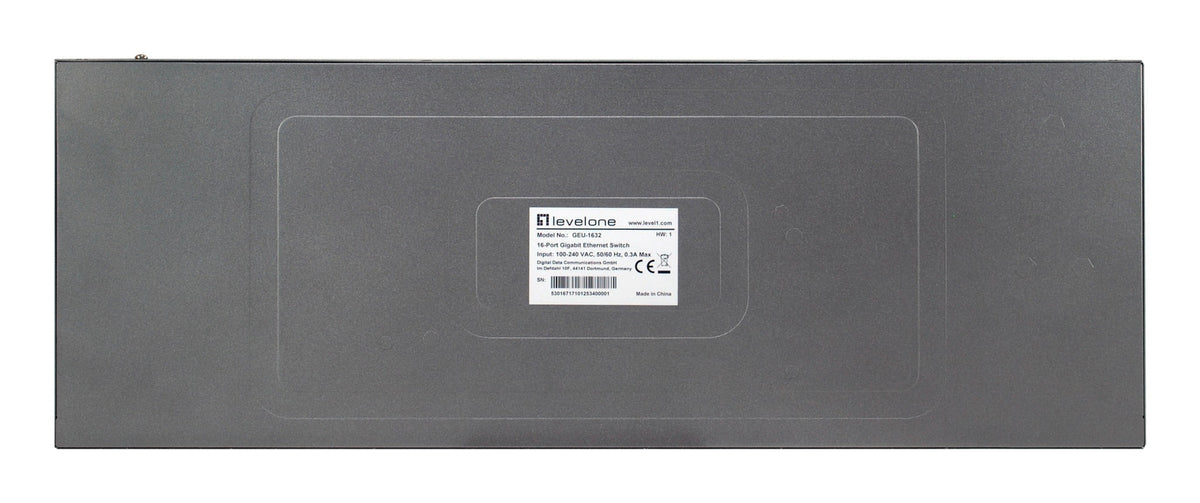

The LevelOne GEU-1632 is a 16-Port Gigabit Ethernet Switch, featuring a 4-Mode DIP Button and a 19" rackmount design. This unmanaged switch is compatible with Ethernet LAN data rates of 10, 100, and 1000 Mbit/s and has a maximum power consumption of 12 W. It supports surge protection with a voltage rating of 6 kV, operates within an input voltage range of 100-240 V AC, and requires an input current of 0.3 A. Its dimensions are 440 mm in width, 240 mm in height, and 160 mm in depth, and it weighs 1240 g. The switch is fanless with a noise level of 0 dB, allowing for a quiet operation while utilizing LED indicators for Activity, Link, and Power status. The switching capacity is rated at 32 Gbit/s with a forwarding rate of 23.81 Mpps and includes compliance with multiple standards including IEEE 802.3, IEEE 802.3ab, and IEEE 802.3u.
Key Features
- 16 Basic switching RJ-45 Ethernet ports
- Gigabit Ethernet (10/100/1000) ports type
- Maximum power consumption 12 W
- Surge protection voltage 6 kV
- Fanless design
- LED indicators: Activity, Link, Power
- Compliant with IEEE networking standards
- Rack mountable
- Switching capacity 32 Gbit/s
Specifications
Brand: LevelOne
Model Number: GEU-1632
Product Type: Switch
Width (mm): 440
Height (mm): 240
Depth (mm): 160
Weight (g): 1240
Power Source: AC
Input Voltage: 100 - 240 V
Input Current: 0.3
Max Power Consumption W: 12
Surge Protection: Yes
Surge Protection Voltage: 6 kV
Switch Type: Unmanaged
Switching Capacity: 32 Gbit/s
Forwarding Rate: 23.81 Mpps
Data Transfer Rate: 1 Gbit/s
LED Indicators: Activity, Link, Power
€193,90
