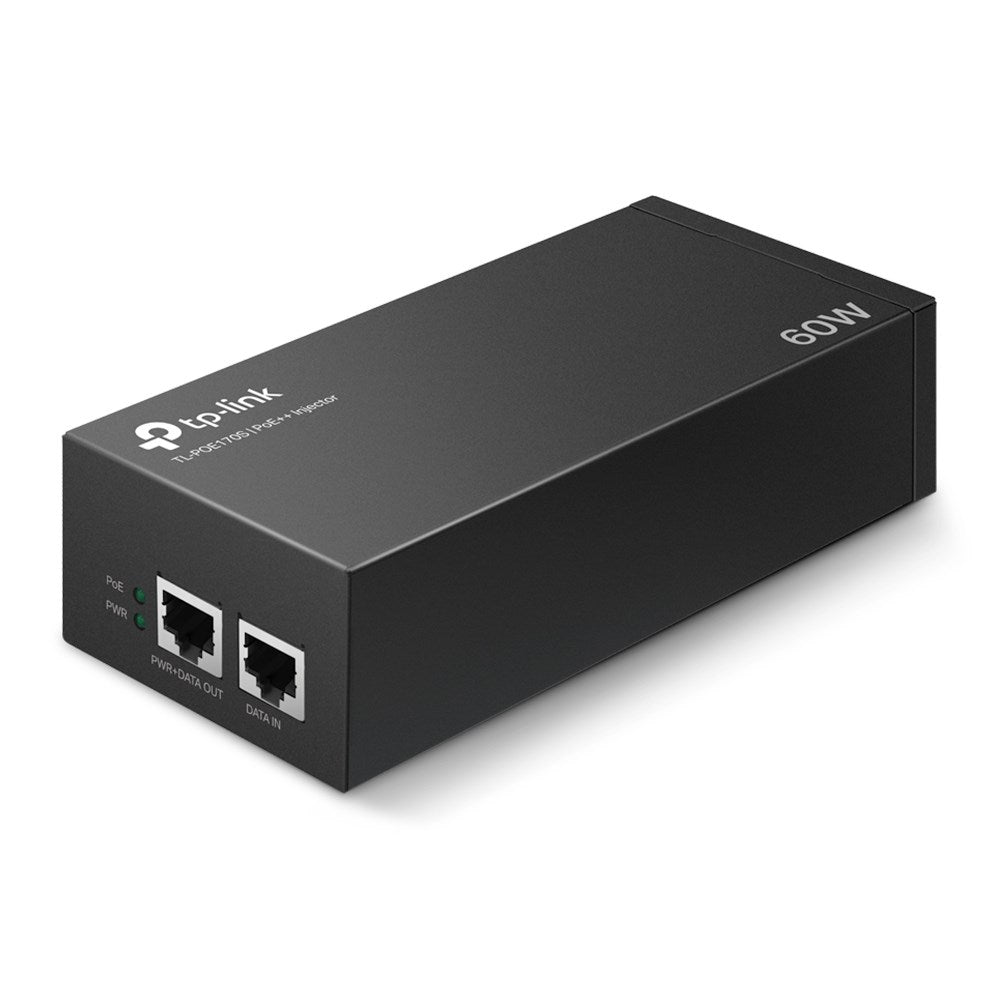

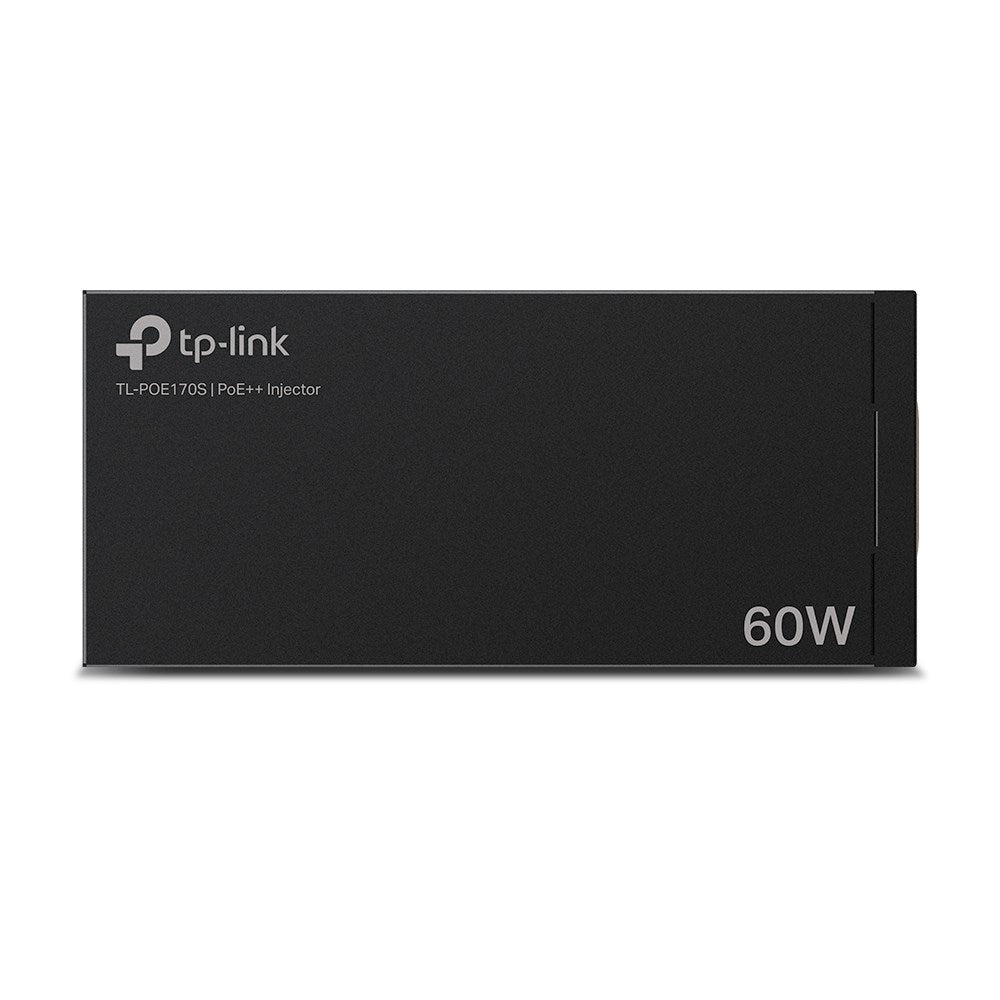

TP-LINK TL-POE170S 60W Gigabit PoE++ Injector/Power Supply for Access Points. The Omada PoE++ POE170S injector is fully compliant with IEEE 802.3af/at/bt (type 3) standards and provides up to 60W of power. It can easily expand your network to areas without power lines or outlets, ideal for connecting IP PTZ cameras, access points, and LEDs. Two Gigabit ports Compatible with IEEE802.3af/at/bt (type 3) standards, provides up to 60W Transmits data and power to PoE devices via Ethernet cable Automatically determines and delivers the exact amount of power needed for the device Design for wall and desktop mounting Plug & Play installation Durable metal casing General Material: Metal casing Hardware Features Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt Network Media 10BASE-T: Category 3, 4, 5 UTP cables (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100BASE-TX: Category 5, 5e UTP cables (maximum 100m) EIA/TIA-568 100 STP (Maximum 100 m) 1000BASE-T: Category 5, 5e, 6 UTP cables (maximum 100 m) Ports 1 10/100/1000 Mbps RJ45 data input port 1 10/100/1000 Mbps RJ45 power + data output port (max. 60 W) 1 AC outlet Power Consumption Input: 100-240 V, 50/60 Hz, 1.6 A Output: Automatic determination of required power (max. 60 W) Basic Functions Automatic detection algorithm allows power supply with PD 802.3af/at/bt Automatically determines required power requirements Supports wall mounting and table installation Plug-and-Play LED PoE Power Dimensions (W x D x H): 6.1 x 2.8 x 1.7 in (155 x 70 42 mm) Other Certification: FCC, CE, RoHS Package Contents Omada PoE++ POE170S Injector Installation Guide Power Cord RJ45 Cable Environment Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing.
€84,08
