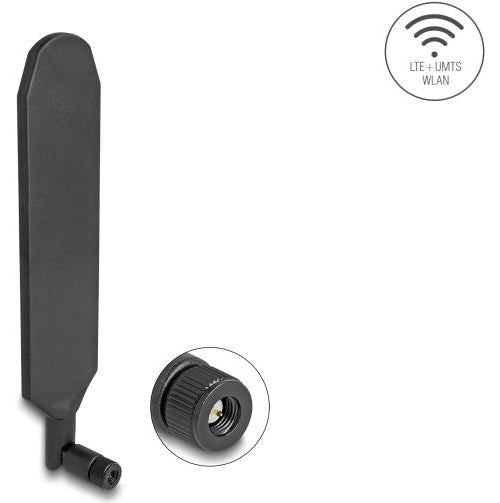

Delock LTE GNSS Antenna SMA Connector 1.5 - 3.0 dBi Omnidirectional Rotatable with Tilt Joint Black (90103)
€66,74
Description This LTE GNSS antenna from Delock enables the use of different LTE bands and global reception of GNSS signals indoors. It is fully compatible with GSM, UMTS, Bluetooth, 2.4 GHz Wi-Fi, ZigBee, DECT, Z-Wave, and LoRa. 5G, the new mobile communications standard. Unlike its predecessors LTE (4G) and UMTS (3G), 5G will use broader frequency spectrums. The 5G standard promises higher transmission speeds, capacity, and low latency. Technical specifications Connection: 1 x SMA connector LTE, GNSS, Bluetooth, GSM, UMTS, WLAN 2.4, ZigBee, Z-Wave, DECT, LoRa Frequency range: 700 - 960 MHz 1575.42 MHz 1710 - 2700 MHz Antenna gain: 700 - 960 MHz: 1.5 dBi 1575.42 MHz 1.8 dBi 2100 - 2700 MHz: 3.0 dBi Impedance: 50 Ohm VSWR: 700 - 960 MHz: 3.0 1575 - 2700 MHz: 2.0 Operating temperature: -40 °C 80 °C Housing material: ABS Dimensions (LxWxH): approx. 209 x 42 x 6 mm System requirements Device with free SMA connection Package Contents Antenna.
