Description

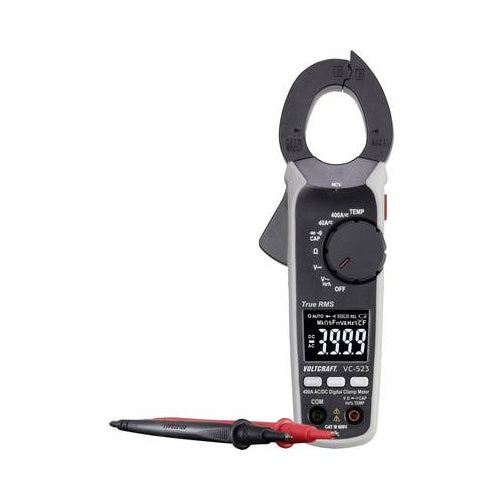

The VOLTCRAFT VC-523 clamp meter is a digital True RMS instrument featuring a 32 mm jaw opening for AC/DC current measurements up to 400 A and voltage measurements up to 600 V (CAT III). It offers a 4000-count contrast-rich LCD and delivers eight measurement functions including resistance, capacitance, frequency, temperature via a Type K thermocouple probe, continuity, and diode testing, plus non-contact voltage detection. An ergonomically placed thumb-operated Hold button and integrated LED illumination aid measurements in poorly lit environments. Factory calibration ensures the device meets specified tolerances without the need for certification.
Key Features
- True RMS AC/DC measurement
- 32 mm jaw opening
- 400 A max current
- 600 V max voltage (CAT III)
- 4000-count display
- Non-contact voltage detection
Specifications
Brand: VOLTCRAFT
Model Number: VC-523
Product Type: Clamp meter
Weight (g): 270
Height (mm): 70
Width (mm): 209
Length (mm): 35
Protection Features: CAT III 600 V
Display Counts: 4000
Battery Cell Type: AAA
Battery Count: 3
Batteries Included: true
Charger Included: false
Rechargeable: false
True Rms: true
Non Contact Voltage Test: true
Data Hold: true
Auto Off: true
Pulse Duration Measurement: true
Jaw Opening Mm: 32
Temperature Measurement Type: Type K thermocouple
Functions Measured: current, voltage, resistance, temperature, capacitance, frequency, continuity, diode
€110,36
